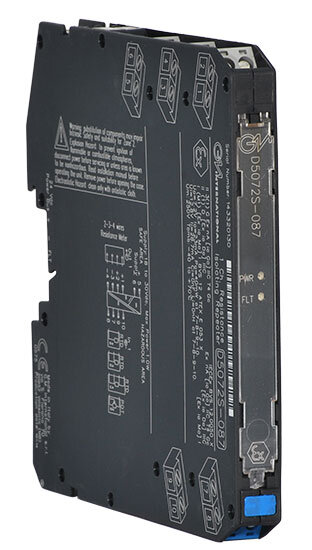

GM International D5072S-087 I.S. SIL2 Resistance Repeater

GM International D5072S-087 I.S. SIL2 Resistance Repeater

Artikelnummer: GMI20250177
Hersteller: GM International

399,00 €

exkl. 19% USt. , zzgl. (National)

Sofort verfügbar
Lieferzeit: 24 - 26 Werktage (Ausland)

Beschreibung

FEATURES

SIL 2 / SC 3
Input from Zone 0/Div. 1
Installation in Zone 2/Div. 2
2/3/4wire res./RTD or potentiometer input
Burnout Fault detection
Fully programmable operating parameters
High Accuracy
Three port isolation, Input/Output/Supply
High Density, two channels per unit

STATUS

ACTIVE

CHANNELS

View datasets

Technical Data

Supply
Voltage	24 Vdc nom (18 to 30 Vdc), reverse polarity protected
Current Consumption	35 mA @ 24 Vdc with 1 mA exitation current, typical.
Power Dissipation	0.85 W @ 24 Vdc with 1 mA excitation current, typical.
Input
Type	2-3-4 wire Resistance or 2 transmitting pot.
Integration time	from 50 ms to 500 ms.
Input range	0 to 4 kΩ.
Measuring RTD current	≤ 0.15 mA.
Output
Type	2-3-4 wire resistance.
Transfer characteristic	linear, scaled or custom.
Response time	10 to 90 % step: ≤ 10.0 ms (slow), ≤ 1.2 ms (fast).
Output range	0 to 400 Ω.
Excitation current	0.1 to 10 mA.
Fault
Type	Burnout / Internal fault. Output reflects fault condition via highscale (450 Ω) value forcing. Fault condition is also signaled via BUS and red LED on front panel.
Input to out performance
Ref. Conditions	24 V supply, 23 ± 1 °C ambient temperature, slow integration mode, 4 wires configuration for RTD, input/output range 10 to 400 Ω.
Calibration and linearity accuracy	≤ 200 mΩ typical (Excitation Current ≥ 1 mA); ≤ 300 mΩ typical (0.5 mA ≤ Excitation Current < 1 mA).
Temp. influence	± 20 mΩ/°C, typical (Excitation Current ≥ 1 mA).
Isolation
Test Voltage	I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.
Environmental conditions
Operating temperature	temperature limits –40 to +70 °
Storage temperature	temperature limits –45 to +80 °C.
Safety description
Equipment	Associated apparatus and non-sparking electrical equipment.
Safety parameters	Uo = 7.2 V, Io = 23 mA, Po = 40 mW, Ui = 12.8 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9-10.
Mounting
Type	DIN-Rail 35 mm, with or without Power Bus.
Weight	about 130 g
Connection	by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions	Width 12.5 mm, Depth 123 mm, Height 120 mm.
