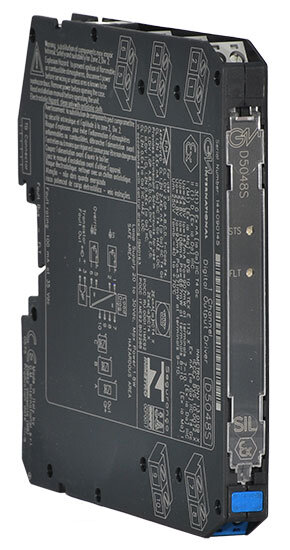

FEATURES
- SIL 3 / SC 3
- Output to Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- Loop powered for NE loads
- Line & Load short/open circuit detection
- Output short circuit proof
- In-field programmability by DIP Switch
- Three port isolation, Input/Output/Fault
Technical Data
Input
|
| Type |
Loop powered control signal. |
| Voltage |
24 Vdc nom (20 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
65 mA @ 24 Vdc with 45 mA output, typical, ≤ 10 mA when fault circuit enabled and fault condition detected. |
| Power Dissipation |
1.1 W @ 24 Vdc with 45 mA output, typical. |
Override input
|
| Type |
Override control signal de-energizes output when enabled by dip-switch. |
| Voltage |
0 V ≤ OFF ≤ 5 V, 20 V ≤ ON ≤ 30 V, reverse polarity protected. |
| Current Consumption |
15 mA @ 24 Vdc, typical. |
Output
|
| Type |
45 mA @ 13.0 V (21.0 V no load, 174 Ω series resistance) at terminals 7-10 Out A. 45 mA @ 10.2 V (21.0 V no load, 236 Ω series resistance) at terminals 8-10 Out B. 45 mA @ 8.5 V (21.0 V no load, 275 Ω series resistance) at terminals 9-10 Out C. |
| Short circuit current |
≥ 50 mA, 55 mA typical |
| Output diagram |
refer to Instruction Manual. |
| Response time |
≤ 75 ms. |
Fault
|
| Type |
Field device and wiring open circuit or short circuit detection dip-switch selectable. When fault is detected, output is de-energized until normal condition is restored. |
| Short output |
load resistance ≤ 50 Ω (≈ 2 mA forcing to detect fault). |
| Open output |
load resistance > 10 kΩ. |
| Fault signaling |
voltage free NE SPST optocoupled open-collector transistor (output de-energized in fault condition). |
| Open-collector/drain rating |
100 mA @ 35 Vdc (≤ 1.5 V voltage drop). |
| Leakage current |
≤ 50 μA @ 35 Vdc. |
| Response time |
≤ 75 ms. |
Isolation
|
| Test Voltage |
I.S. Out/In 2.5kV; I.S. Out/Fault 2.5kV; I.S. Out/Override 2.5kV; In/Fault 500 V; In/Override 500 V; Fault/Override 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 24.8 V, Io = 147 mA, Po = 907 mW at terminals 7-10 Out A. Uo = 24.8 V, Io = 108 mA, Po = 667 mW at terminals 8-10 Out B. Uo = 24.8 V, Io = 93 mA, Po = 571 mW at terminals 9-10 Out C. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 130 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
