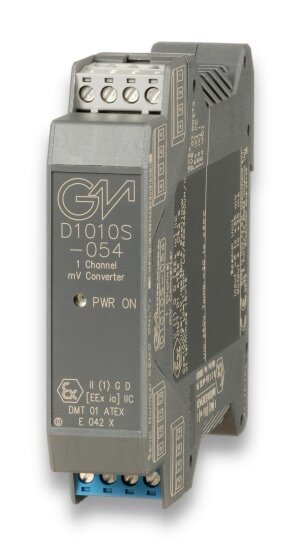

GM International D1010S-054 mV to mA Converter DIN-Rail Models

GM International D1010S-054 mV to mA Converter DIN-Rail Models

Artikelnummer: GMI20250014
Hersteller: GM International

$ 397,97

exkl. 19% USt. , zzgl. (National)

Sofort verfügbar
Lieferzeit: 3 - 5 Werktage (Ausland)

Beschreibung

FEATURES

Input from Zone 0 (Zone 20),installation in Zone 2.
-5 to +55 mV Input / 4 to 20 mA Output.
Input and Output short circuit proof.
High Accuracy.
Three port isolation, Input/Output/Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4.
250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

Technical Data

Supply
Type	24 Vdc nom (20 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.
Current Consumption	40 mA with 20 mA output typical.
Power Dissipation	0.9 W with 24 V supply voltage and 20 mA output typical
Max. power consumption	at 30 V supply voltage and overload condition 1.2 W.
Input
Type	-5 to +55 mV
Output
Type	4 to 20 mA, on 250 Ω load in source mode.
Response time	25 ms (10 to 90 % step change) with 8.6 dB of NMRR.
Common mode rejection	better than 80 dB.
Output ripple	≤ 20 mVrms on 250 Ω load.
Burnout	Upscale in 25 ms.
Performance
Type	Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature
Calibration accuracy	≤ ± 0.1 % of full scale
Linearity error	≤ ± 0.1 % of full scale
Supply voltage influence	≤ ± 0.02 % of full scale for a min to max supply change.
Load influence	≤ ± 0.02 % of full scale for a 0 to 100 % load resistance change.
Stability	estimated degradation in 3 years ≤ ± 0.47 % least sensitive range.
Isolation
Test Voltage	I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; Out/Supply 500 V
Environmental conditions
Operating	temperature limits -20 to + 60 °C, relative humidity max 95 %.
Storage	temperature limits -45 to + 80 °C.
Safety description
Safety parameters	Uo/Voc = 1.1 V, Io/Isc = 38 mA, Po/Po = 11 mW at terminals 15-16. Ui/Vmax = 30 V, Ii/Imax = 104 mA, Ci = 1.05 nF, Li = 0 nH at terminals 15-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.
Mounting
Type	EN/IEC60715 TH 35 DIN-Rail.
Weight	about 110 g.
Connection	by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm².
Location	Safe Area or Zone 2, Group IIC T4 installation.
Protection class	IP 20.
Dimensions	Width 22.5 mm, Depth 99 mm, Height 114.5 mm.

Versandgewicht:	0,50 kg
Artikelgewicht:	0,30 kg
Abmessungen ( Länge × Breite × Höhe ):	16,00 × 14,00 × 14,00 cm
Zustand / Condition:	Neu / New
