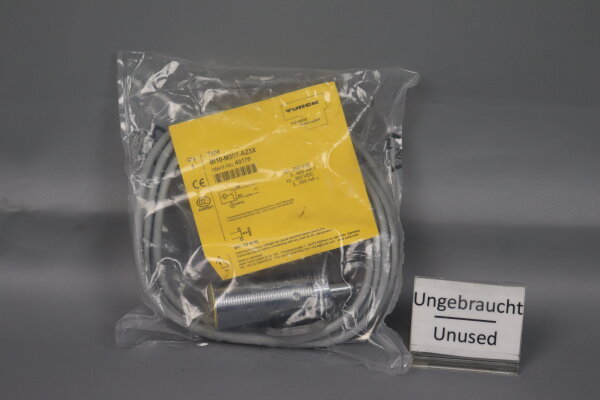

Type BI10-M30T-AZ3X
ID 43170
General data
Rated switching distance 10 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms= 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
Hysteresis 3…15 %
Electrical data
Operating voltage UB 20…250 VAC
Operating voltage UB 10…300 VDC
AC rated operational current ≤ 400 mA
DC rated operating current Ie ≤ 300 mA
Frequency ≥ 50…≤ 60 Hz
Residual current ≤ 1.7 mA
Isolation test voltage 1.5 kV
Surge current ≤ 8 A (≤ 10 ms max. 5 Hz)
Voltage drop at Ie ≤ 6 V
Output function 2-wire, NO contact, 2-wire
Smallest operating current ≥ 3 mA
Switching frequency 0.02 kHz
Technical data
Mechanical data
Design Threaded barrel, M30 x 1.5
Dimensions 86 mm
Housing material Metal, CuZn, Chrome-plated
Active area material Plastic, PA12-GF30
End cap Plastic, EPTR
Max. tightening torque of housing nut 75 Nm
Electrical connection Cable
Cable quality Ø 5.2 mm, LifYY, PVC, 2 m
Core cross-section 3 x 0.5 mm2
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,25 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
Product safety information
Manufacturer information:
Hans Turck GmbH & Co. KG
Witzlebenstraße 7
Nordrhein-Westfalen
Mülheim an der Ruhr, Deutschland, 45472
more@turck.com
http://www.turck.com/
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
