Bremswiderstand – SK BRU5-1-400-100
275299101
-----------------------------------

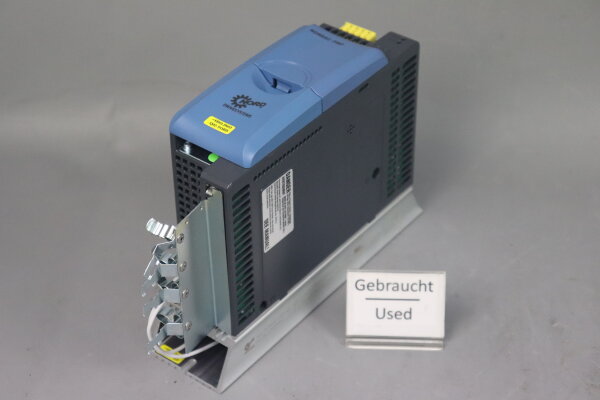

INVERTER SK 510P-250-340-A
Efficiency class : IE2
Mains supply : 3~ 380 … 480 V, -20% /+10 %, 47 … 63 Hz
Control voltage type : Internal 24V power supply
Protection class of drive electronics : IP20
Ventilation type : Features
Brake chopper : Yes
Status LED : Yes
Available diagnostic interfaces : RJ12
Integrated bus connections : CAN, CANopen, RS232, USS, ModBus
System bus : Potential not separated
Digital inputs : 5
Analogue/digital inputs : 2
Analogue/digital outputs : 1
Relays :2
PTC input via digital input: Yes
PTC input : No
Communication interface of the rotary encoder : HTL, CANopen
Depth : 141 mm
Width : 66 mm
Height : 200 mm
Output current (RMS) : 1.00 A
Output current (FLA) : 0.90 A
Min. pulse frequency : 4 kHz
Max. pulse frequency : 16 kHz
Max. output frequency : 400.00 Hz
Nominal power : 0.25 kW
Nominal power : 0.33 HP
Efficiency : > 95%
| Shipping weight: |
2,50 kg
|
| Item weight: |
1,70 kg
|
| Dimensions
( Length × Width × Height ):
|
33,00 × 23,00 × 13,00 cm |
| Zustand / Condition: |
Gebraucht / Used |
Product safety information
Manufacturer information:
Getriebebau NORD GmbH & Co. KG
Getriebebau-Nord-Straße 1
Schleswig-Holstein
Bargteheide, Deutschland, 22941
info@nord.com
https://www.nord.com
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
