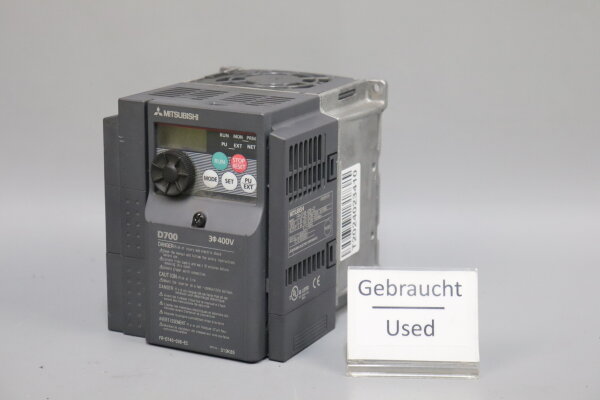

FA-Inverter: Umrichter
Series |
FR-D700 SERIES |
| Type |
FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) |
380 |
| Min. Permissible Voltage (V) |
325 |
| Maximum Rated Voltage (V) |
480 |
| Max. Permissible Voltage (V) |
528 |
| Current Type |
AC |
| Phases |
3 |
| Rated Output Current ND (A) |
3,6 |
| Rated Motor Capacity ND (kW) |
1,5 |
| Control Method |
V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type |
INDUCTION MOTOR |
| Brake Chopper ED (%) |
30 |
| Integrated EMC Filter |
NO |
| Safe Torque Off (STO) |
YES |
| Regenerative (4Q) |
NO |
| Display |
BUILT-IN |
| PLC Function |
NO |
| Integrated Analogue Outputs |
1 |
| RS-485 |
1 |
| Power Loss ND (W) |
90 |
| Frequency Range (Hz) |
0,2–400 |
| Integrated DC Choke |
NO |
| Display Type |
4 DIGITS LED |
| Integrated Digital Inputs |
5 |
| Digital Outputs (Transistor) |
1 |
| Digital Outputs (Relay) |
1 |
| Integrated Analogue Inputs |
2 |
| IO Type of Terminal Block |
SPRING CLAMP |
| Expandable |
NO |
| USB |
NO |
| Ethernet Port |
NO |
| Built-In Network |
MODBUS-RTU |
| Leakage Current (mA) |
1 |
| Standby Power Consumption (W) |
10,5-17 |
| Protection Class |
IP20 |
Produktabmessungen & Gewicht
| Width (mm) |
108 |
| Height (mm) |
128 |
| Depth (mm) |
135,5 |
| Weight (kg) |
1,3 |
Konformität
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping weight: |
3,00 kg
|
| Item weight: |
1,50 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Gebraucht / Used |
Product safety information
Manufacturer information:
Mitsubishi
, ,
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
