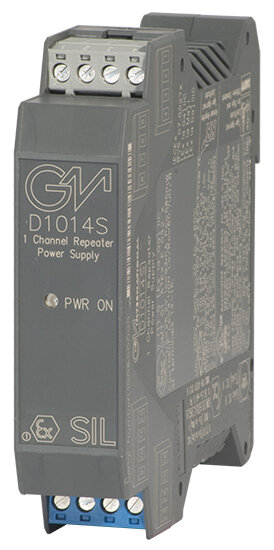

GM International D1014S SIL 2 Repeater Power Supply Hart compatible DIN-Rail

GM International D1014S SIL 2 Repeater Power Supply Hart compatible DIN-Rail

SKU: GMI20250022
Manufacturers: GM International

248,00 €

excl. 19% VAT , plus (National)

Available immediately
Delivery time: 3 - 5 Workdays (Other countries)

Description

FEATURES

SIL2 /SC3
Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
High Density, two channels per unit.
4-20 mA Input, Output Signal.
HART® compatible.
Input and Output short circuit proof.
High Accuracy.
Three port isolation, Input/Output/Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1
In-field programmability by DIP Switch.
250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

Technical Data

Supply
Voltage	12-24 Vdc nom (10 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.
Current Consumption	110 mA for 2 channels D1014D, 55 mA for 1 channel D1014S with 20 mA output typical.
Power Dissipation	1.8 W for 2 channels D1014D, 0.9 W for 1 channel D1014S with 24 V supply voltage and 20 mA output typical.
Max. power consumption	at 30 V supply voltage and short circuit condition, 3.4 W for 2 channels D1014D, 1.7 W for 1 channel D1014S.
Input
Type	4 to 20 mA (2 wire Tx current limited at ≈ 25 mA).
Transmitter line voltage	≥ 15.0 V at 20 mA with max. 20 mVrms ripple on 0.5 to 2.5 KHz frequency band.
Output
Type	4 to 20 mA, on max. 600 Ω load in source mode; V min. 5 V at 0 Ω load V max. 30 V in sink mode, current limited at ≈ 25 mA or 1 to 5 V on internal 250 Ω shunt (or 2 to 10 V on internal 500 Ω shunt on request).
Response time	20 ms (10 to 90 % step change).
Output ripple	≤ 20 mVrms on 250 Ω communication load on 0.5 to 2.5 KHz band.
Frequency response	0.5 to 2.5 KHz bidirectional within 3 dB (HART® protocol).
Performance
Type	Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
Calibration accuracy	≤ ± 0.1 % of full scale.
Linearity error	≤ ± 0.1 % of full scale.
Supply voltage influence	≤ ± 0.05 % of full scale for a min to max supply change.
Load influence	≤ ± 0.05 % of full scale for a 0 to 100 % load resistance change.
Temperature influence	≤ ± 0.01 % on zero and span for a 1 °C change.
Isolation
Test Voltage	I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.
Environmental conditions
Operating	temperature limits -20 to + 60 °C, relative humidity max 95 %.
Storage	temperature limits - 45 to + 80 °C.
Safety description
Safety parameters	Uo/Voc = 25.2 V, Io/Isc = 93 mA, Po/Po = 585 mW at terminals 14-15, 10-11. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.
Mounting
Type	EN/IEC60715 TH 35 DIN-Rail.
Weight	about 170 g D1014D, 115 g D1014S.
Connection	by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm².
Location	Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.
Protection class	IP 20.
Dimensions	Width 22.5 mm, Depth 99 mm, Height 114.5 mm.

Shipping weight:	0,50 kg
Item weight:	0,30 kg
Dimensions ( Length × Width × Height ):	16,00 × 14,00 × 14,00 cm
Zustand / Condition:	Neu / New
