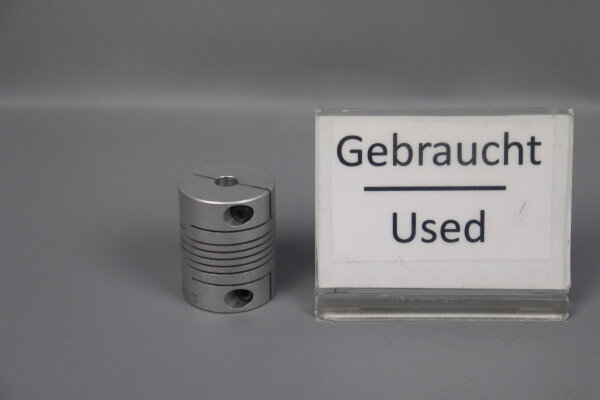

Helical coupling for rotary encoders
COUPLING 25-6-10-32-KV
*Backlash-free transmission of rotary movements
*Effective vibration damping
*Good compensation for misalignment
*Low torsional stiffness
*Low restoring forces
Weight[g] 34.5
Dimensions [mm] Ø 25 / L = 32
Tightening torque [Nm] Tightening torque screws: 120 Ncm
Materials Aluminum
Outer diameter D [mm] 25
Inner diameter 1 [mm] 6
Inner diameter 2 [mm] 10
Clamping screw[mm] M3x12-ISO 4762
Length L[mm] 32
Max. mechanical speed[rpm] 6000
Max. axial shaft misalignment[mm] ± 0.5
Max. radial shaft misalignment[mm] ± 0.35
Max. angular misalignment[°] ± 4.0
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,10 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Gebraucht / Used |
Product safety information
Manufacturer information:
ifm electronic gmbh
Friedrichstraße 1
Baden-Württemberg
Essen, Deutschland, 45128
info@ifm.com
https://www.ifm.com
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
