Terminal No. | Abbreviation | Description | Ratings
G | — |Flame Sensor Ground a | —
Earth G — Earth Ground a —
N — Line Voltage Common (Neutral) —
3 AL Alarm (Normally Open) 220/230/240 Vac, 1A, 10A inrush for 5000 cycles.
4 L! Line Supply Voltage (L1) 220-240 Vac (+10%/-15%), 50/60 Hz (±10%).
5 FAN Burner/Blower Motor 220/230/240 Vac, 4A at PF = 0.5, 20A inrush.
6 RT Limits and Burner Control 220/230/240 Vac, 5A (maximum).
7 LD2 Airflow Switch Input 220/230/240 Vac, 1 mA.
8 PV1 Pilot Valve 1 (Interrupted) 220/230/240 Vac, 4A at PF = 0.5, 20A inrush.c
9 MV Main Fuel Valve 220/230/240 Vac, 4A at PF = 0.5, 20A inrush.c
10 IGN Ignition 220/230/240 Vac, 4A at PF = 0.2. c
F (11) — Flame Signal 136 to 220 Vac, current limited.
12 HI Firing Rate High Fire 220/230/240 Vac, 0.5A at PF = 0.5. d
13 COM Firing Rate Common 220/230/240 Vac, 0.5A at PF = 0.5. d
14 MOD Firing Rate Modulate 220/230/240 Vac, 0.5A at PF = 0.5. d
15 LO Firing Rate Low Fire 220/230/240 Vac, 0.5A at PF = 0.5. d
16 — Control Voltage 230 Vac (+10%/-15%).
17 ES2 Preignition Interlock Input 220/230/240 Vac, 1 mA.
18 ES1 Low Fire Switch Input 220/230/240 Vac, 1 mA.
19 ES3 High Fire Switch Input 220/230/240 Vac, 1 mA.
20 LOS Lockout Input 220/230/240 Vac, 1 mA.
21 PV2 Pilot Valve 2 (Intermittent) 220/230/240 Vac, 4A at PF = 0.5, 20A inrush.c
22 SHTR Shutter Shutter drive for dynamic self-check flame sensor. e
| Shipping weight: |
3,00 kg
|
| Item weight: |
1,70 kg
|
| Dimensions
( Length × Width × Height ):
|
22,00 × 22,00 × 14,00 cm |
| Zustand / Condition: |

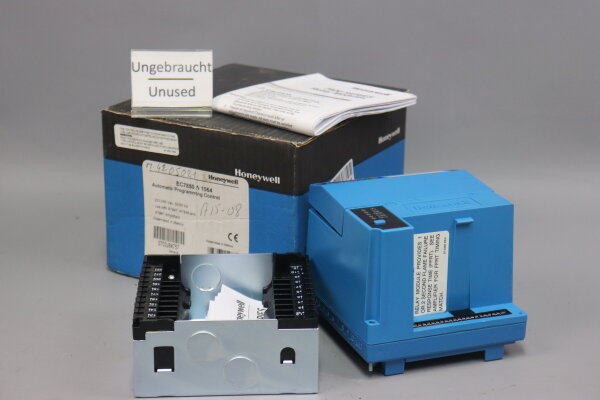

Ungebraucht in OVP / Unused in box |
