Stripping Length
18 mm
Connection Type
Screw connection
Connection Direction
Side
Number of Connections
2
Tightening Torque, max.
5 Nm
Tightening Torque, min.
4 Nm
Clamping Range, max.
50 mm²
Clamping Range, min.
2.5 mm²
Clamping screw
M 6
Max. conductor cross-section (CSA)
2 AWG
Min. conductor cross-section (CSA)
12 AWG
Voltage, Class C (CSA)
600 V
Current, Class C (CSA)
120 A
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temperature, min.
-60 °C
Continuous operating temperature, max.
130 °C
| Shipping weight: |
0,20 kg
|
| Item weight: |
0,10 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |

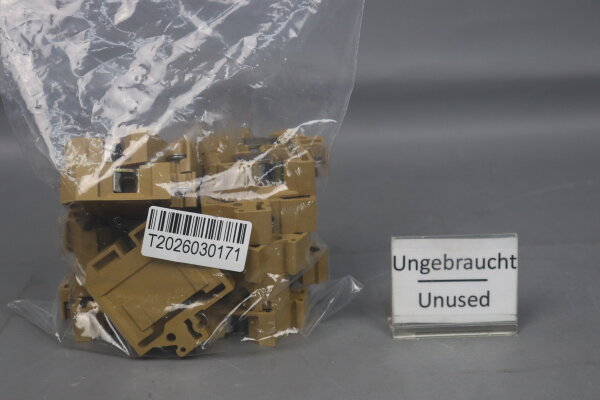

| Zustand / Condition: |
Ungebraucht / Unused |
Product safety information
Manufacturer information:
Weidmüller GmbH & Co. KG
Klingenbergstraße 26
Nordrhein-Westfalen
Detmold, Deutschland, 32758
