| Stroke per jaw [mm] |
6.0 |
| Closing force [N] |
66.0 |
| Opening force [N] |
54.0 |
| Torque [Nm] |
0.3 |
| Angle of rotation [°] |
180 |
| End position adjustability [°] |
180.0 |
| Damping for swiveling |
Elastomer |
| Recommended workpiece weight [kg] |
0.33 |
| Air consumption for gripping [cm³] |
5.97 |
| Air consumption for swiveling [cm³] |
15.0 |
| Weight [kg] |
0.43 |
| Nominal operating pressure [bar] |
6.0 |
| Max. operating pressure [bar] |
6.5 |
| Min. operating pressure for gripping [bar] |
2.0 |
| Min. operating pressure for swiveling [bar] |
4.0 |
| Closing time [s] |
0.05 |
| Opening time [s] |
0.05 |
| Swiveling time with medium-sized attached load** [s] |
0.22 |
| Max. permissible finger length [mm] |
40.0 |
| Max. permissible weight per finger [kg] |
0.08 |
| Max. permissible inertia of the set-up [kgmm²] |
52.0 |
| IP protection class |
30 |
| Min. ambient temperature [°C] |
5.0 |
| Max. ambient temperature [°C] |
90.0 |
| Repeat accuracy for gripping [mm] |
0.02 |
| Repeat accuracy for swiveling [°] |
0.1 |
| Length X [mm] |
40.0 |
| Width Y [mm] |
47.0 |
| Height Z [mm] |
104.0 |
| Moment Mx max. [Nm] |
1.5 |
| Moment My max. [Nm] |
2.0 |
| Moment Mz max. [Nm] |
4.0 |
| Max. axial force Fz max. [N] |
170.0 |
| Shipping weight: |
1,00 kg
|
| Item weight: |
0,40 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |

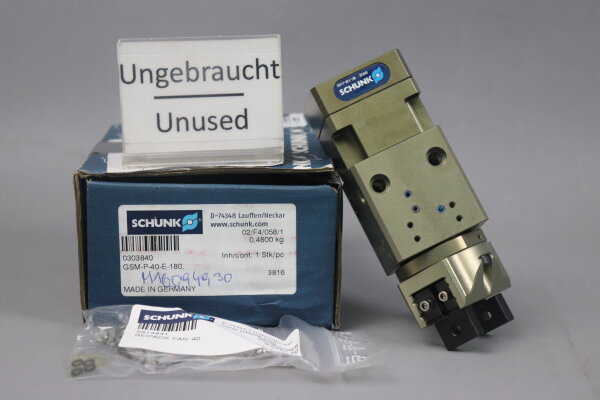

| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
Product safety information
Manufacturer information:
SCHUNK
Bahnhofstr 106 - 134
Baden-Württemberg
Lauffen/Neckar, Deutschland, 74348
info@de.schunk.com
https://schunk.com
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
