| Series |
ComPact |
| Productname |
ComPact NSX |
| Series |
ComPact NSX100 - 250 |
| Short description |
NSX250F |
| Product-type |
Leistungsschalter |
| usage |
Verteilung |
| Number of Poles |
3P |
| Description of safe poles |
3t |
| [In] |
250 A bei 40 °C |
| [Ue] |
690 V AC 50/60 Hz |
| Networktype |
AC |
| Networkfrequency |
50/60 Hz |
| Suitability for isolation |
Ja entspricht EN/IEC 60947-2 |
| Kategory for usage |
Kategorie A |
| [Icu] |
85 kA bei 240 V AC 50/60 Hz entspricht UL 508
22 kA Icu bei 525 V AC 50/60 Hz entspricht IEC 60947-2
35 kA Icu bei 440 V AC 50/60 Hz entspricht IEC 60947-2
36 kA Icu bei 380/415 V AC 50/60 Hz entspricht IEC 60947-2
8 kA Icu bei 660/690 V AC 50/60 Hz entspricht IEC 60947-2
85 kA Icu bei 220/240 V AC 50/60 Hz entspricht IEC 60947-2
35 kA bei 480 V AC 50/60 Hz entspricht UL 508
30 kA Icu bei 500 V AC 50/60 Hz entspricht IEC 60947-2
15 kA bei 600 V AC 50/60 Hz entspricht UL 508 |
| Performance level |
F 36 kA 415 V AC |
| Name of Trigger |
TM-D |
| Trigger-Technology |
Thermomagnetisch |
| Safetyfunctions of trigger |
LI |
| Controltype |
Kippschalter |
| Montageart des Leistungsschalters |
Fixiert |
| Shipping weight: |
2,20 kg
|
| Item weight: |
1,70 kg
|
| Dimensions
( Length × Width × Height ):
|
22,00 × 22,00 × 14,00 cm |

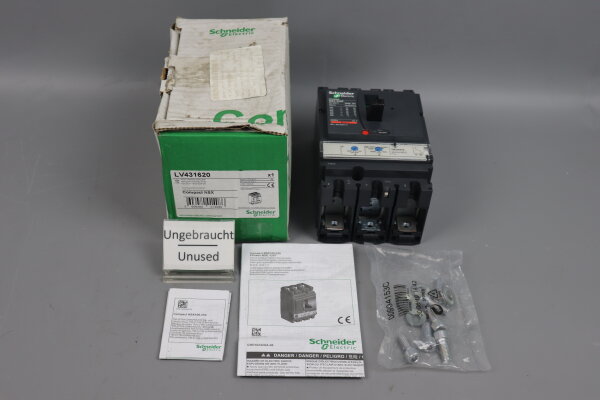

| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
Product safety information
Manufacturer information:
Schneider Electric GmbH
Gothaer Straße 29
Nordrhein-Westfalen
Ratingen, Deutschland, 40880
de-schneider-service@se.com
https://www.se.com/de
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
