| Hub pro Backe [mm] |
10.0 |
| Schließkraft [N] |
730.0 |
| Schließkraft (bei Fingerlänge 0 mm) [N] |
795.0 |
| Min. Federkraft [N] |
180.0 |
| Eigenmasse [kg] |
0.96 |
| Empfohlenes Werkstückgewicht [kg] |
2.75 |
| Zylindervolumen pro Doppelhub [cm³] |
40.0 |
| Min. Betriebsdruck [bar] |
4.0 |
| Max. Betriebsdruck [bar] |
6.5 |
| Nennbetriebsdruck [bar] |
6.0 |
| Min. Sperrluftdruck [bar] |
0.5 |
| Max. Sperrluftdruck [bar] |
1.0 |
| Schließzeit [s] |
0.03 |
| Öffnungszeit [s] |
0.05 |
| Schließ-/Öffnungszeit mit Feder [s] |
0.05 |
| Max. zulässige Fingerlänge [mm] |
100.0 |
| Max. zulässige Masse pro Finger [kg] |
0.95 |
| Schutzart IP |
40 |
| Min. Umgebungstemperatur [°C] |
5.0 |
| Max. Umgebungstemperatur [°C] |
90.0 |
| Wiederholgenauigkeit [mm] |
0.01 |
| Moment Mx max. [Nm] |
48.0 |
| Moment My max. [Nm] |
69.0 |
| Moment Mz max. [Nm] |
42.0 |
| Max. Kraft axial Fz max. [N] |
1200.0 |
| Shipping weight: |
1,50 kg
|
| Item weight: |
0,90 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |

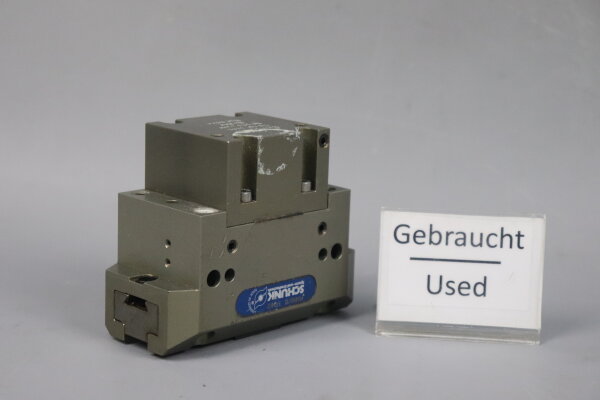

| Zustand / Condition: |
Gebraucht / Used |
Product safety information
Manufacturer information:
SCHUNK
Bahnhofstr 106 - 134
Baden-Württemberg
Lauffen/Neckar, Deutschland, 74348
info@de.schunk.com
https://schunk.com
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
