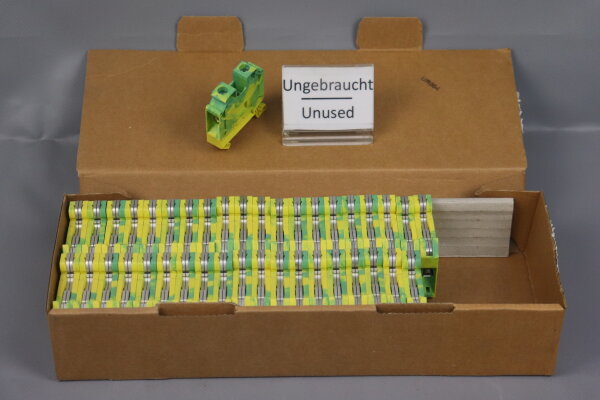

Contents: 40 x pieces V/C:06
Product type Protective conductor terminal
Product family UT
Area of application Railway industry
Mechanical engineering
Plant engineering
Process industry
Number of connections 2
Number of rows 1
Rated impulse voltage 8 kV
Maximum power dissipation under rated conditions 2.43 W
Number of connections per level 2
Nominal cross-section 16 mm²
Level 1 top 1 bottom 1
Screw thread M5
Tightening torque 2.5 ... 3 Nm
Stripping length 14 mm
Connection according to standard IEC 60947-7-2
Rigid conductor cross-section 1.5 mm² ... 25 mm²
Conductor cross-section AWG 14 ... 4 (converted to IEC)
Flexible conductor cross-section 1.5 mm² ... 25 mm²
Flexible conductor cross-section [AWG] 14 ... 4 (converted to IEC)
Flexible conductor cross-section (wire end ferrule without plastic sleeve) 1 mm² ... 16 mm²
Flexible conductor cross-section (wire end ferrule with plastic sleeve) 1 mm² ... 16 mm²
Nominal cross-section 16 mm²
| Shipping weight: |
3,00 kg
|
| Item weight: |
2,00 kg
|
| Dimensions
( Length × Width × Height ):
|
33,00 × 23,00 × 13,00 cm |
| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
