Braking Resistor – SK BRU5-3-100-300
275299309
-----------------------------------

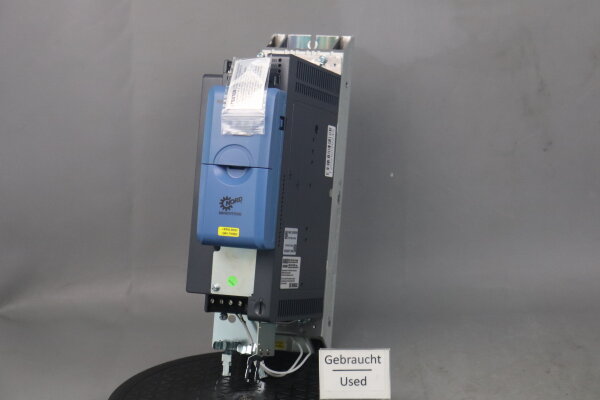

Technical Specifications for FREQUENCY CONVERTER SK 550P-401-340-A
Efficiency Class: IE2
Mains Supply: 3-phase 380 … 480 V, -20% /+10%, 47 … 63 Hz
Control Voltage Type: Internal 24 V, External 24 V
Protection Rating of Drive Electronics: IP20
Ventilation Type: Fan-cooled
Braking Chopper: Yes
Status LED: Yes
Available diagnostic interfaces: USB-C, RJ12
Integrated bus connections: CAN, CANopen, RS232, USS, ModBus, EtherCat, Ethernet/IP, Powerlink, Profinet IO
System bus: Potentially isolated
Digital inputs: 6
Digital outputs: 2
Analog/digital inputs: 2
Analog/Digital Outputs: 1
Relays: 2
PTC Input via Digital Input: No
PTC Input: Yes
Encoder Interface: HTL, CANopen, TTL
Depth: 175 mm
Width: 91 mm
Height: 286 mm
Output Current (RMS): 9.50 A
Output current (FLA): 8.90 A
Min. pulse frequency: 4 kHz
Max. pulse frequency: 16 kHz
Max. output frequency: 400.00 Hz
Rated power: 4.00 kW
Rated power: 5.00 HP
Efficiency: > 95%
| Item information |
Value |
| Shipping weight: |
5,00 kg
|
| Item weight: |
4,10 kg
|
| Dimensions
( Length × Width × Height ):
|
40,00 × 24,00 × 20,00 cm |
| Zustand / Condition: |
Gebraucht / Used |
Product safety information
Manufacturer information:
Getriebebau NORD GmbH & Co. KG
Getriebebau-Nord-Straße 1
Schleswig-Holstein
Bargteheide, Deutschland, 22941
info@nord.com
https://www.nord.com
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
