FEATURES
- Safe disconnection in the event of an overload.
- Remote signaling sets are easy to retrofit.
- Remote monitoring of up to 40 protective devices per remote signaling set.
- No configuration of the remote signaling module or protective device required.
- High Density, 6.2 mm per channel.
STATUS
Technical Data
Supply
|
| Operating voltage |
10-30 Vdc |
| Operating current |
30 mA (24 V), 60 mA (10 V) |
Output
|
| Switching function |
potential-free normally close contact |
| Contact rating |
500 mA 30 Vdc 15 W, 500 mA 24 Vac 12 VA |
Environmental conditions
|
| Operating temperature |
temperature limits – 40 to + 60 °C. |
| Storage temperature |
temperature limits – 40 to + 85 °C. |
Mounting
|
| Type |
TH 35 DIN Rail according to EN/IEC60715. |
| Weight |
about 70 g for each module. |
| Connection |
screw terminal blocks to accommodate terminations up to 2.5 mm2 flexible. |
| Location |
installation in Safe Area. |
| Protection class |
IP20. |

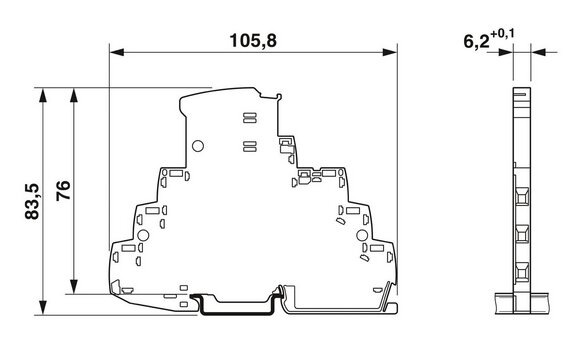

| Dimensions |
Width 6.2 mm, Depth 83.5 mm, Height 105.8 mm. |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
Product safety information
Manufacturer information:
G.M. International S.p.A
Via G. Mameli 53-55
Monza e Brianza
Villasanta, Italien, 20852
info@gminternational.com
https://gminternational.com/
