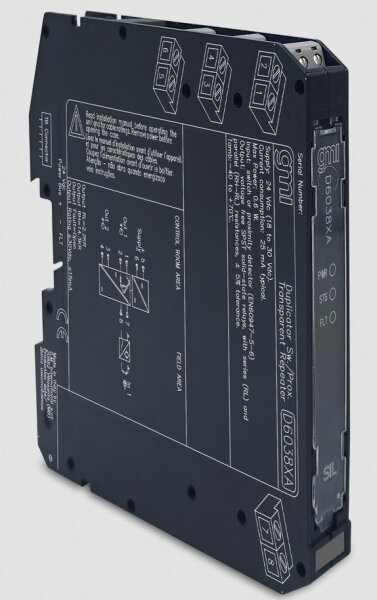

GM International D6038XA SIL3 Line-Fault Transp. Switch/Prox. Repeater

159,00 €

excl. 19% VAT , plus (National)

ACTIVE

Supply
Voltage	24 Vdc nom. (18 to 30 Vdc), reverse polarity protected.
Current Consumption	25 mA @ 24 Vdc, typical.
Power Dissipation	1.0 W @ 24 Vdc, typical.
Input
Input switching current levels	ON ≥ 2.1 mA, OFF ≤ 1.2 mA.
Open Fault	Current ≤ 0.05 mA.
Short fault	Resistance ≤ 100 Ω.
No Fault	Current ≥ 0.35 mA and resistance ≥ 360 Ω.
Input equivalent source	8 V 1 kΩ typical (8 V no load, 8 mA short).
Output
Type	Voltage free SPST solid-state relays, with series (RL) and parallel (RH-RL) resistances, ±5% tolerance.
Fault impedance	> 1 MΩ.
Max voltage	30 Vdc.
Response time	500 µs.
Frequency response	1 kHz maximum.
Isolation
Test Voltage	In/Out 1.5 kV; In/Supply 1.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.
Environmental conditions
Operating temperature	Temperature limits –40 to +70 °C.
Storage temperature	Temperature limits –45 to +80 °C.
Mounting
Type	DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight	about 135 g.
Connection	By polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions	Width 12.5 mm, Depth 123 mm, Height 120 mm.
