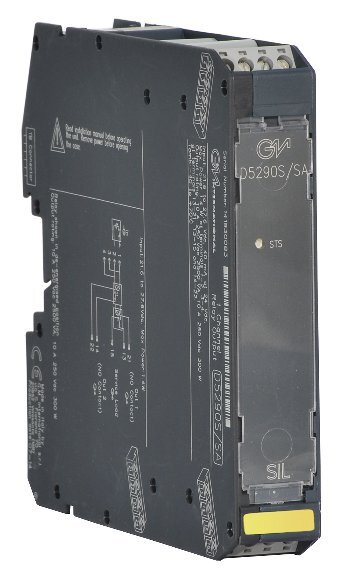

FEATURES
- SIL 3 / SC 3 for NE loads with NE driver
- Up to 10 A functional / 16 A inrush current
- Load disconnection on both supply lines available
- Service contact available
- Input/Output isolation
STATUS
Technical Data
Input
|
| Type |
24 Vdc nom (21.6 to 27.6 Vdc), reverse polarity protected. Relay coils are internally protected with suppressor diodes. |
| Current Consumption |
40 mA @ 24 Vdc, typical. |
| Power Dissipation |
1.0 W @ 24 Vdc, typical. |
Output
|
| Type |
1 voltage free SPDT relay contact identified with outputs: Out 1 (NO contact) terminals 13-21 and Service Load Out (NC contact) terminals 13-15; 1 voltage free SPST relay contact identified with output Out 2 (NO contact) terminals 14-22. Terminals 13-21 (Out 1) and 14-22 (Out 2) are open when relay is de-energized, closed in energized relay condition. Service load output (not SIL) at terminals 13-15 is normally close when relay is de-energized, open in energized relay condition. |
| Contact material |
Ag Alloy (Cd free) or AgSnO2. |
| Contact rating |
10 A 250 Vac 2500 VA, 10 A 250 Vdc 300 W (resistive load). |
| Contact inrush current |
16 A @ 24 Vdc, 250 Vac. |
| Contact min. switching current |
100 mA. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
10 * 10⁶ / 5 * 10⁴ operation, typical. |
| Operate / release time |
8 ms / 8 ms, typical. |
Isolation
|
| Test Voltage |
Input/All Outs 2.5 kV; Out 1/Out 2 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits -45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, or on custom Term. Board. |
| Weight |
about 150 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 22.5 mm, Depth 123 mm, Height 120 mm. |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
