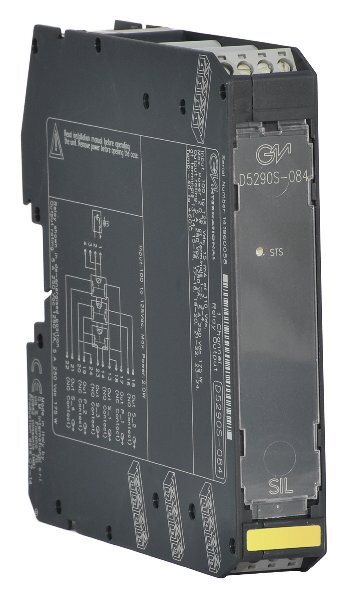

FEATURES
- SIL 3 / SC 3 for NE/ND loads with NE driver
- Up to 5 A functional / 8 A inrush current
- Load disconnection on both supply lines available
- Service contact available
- Multiple contacts (up to 4 NE or 2 ND loads)
- Input/Output isolation
Technical Data
Input
|
| Type |
110 Vdc nom (100 to 125 Vdc), reverse polarity protected. Relay coils are internally protected with suppressor diodes. |
| Current Consumption |
15 mA @ 110 Vdc, typical. |
| Power Dissipation |
1.7 W @ 110 Vdc, typical. |
Output
|
| Type |
2 voltage free SPDT (= NO contact + parallel of 2 NC contacts) relay contacts identified with outputs: Out S_1 & Out P_1 and Out S_3 & Out P_2; 2 voltage free SPST (NO) relay contacts identified with: Out S_2 and Out S_4. Terminals 13-14 (Out S_1), 15-16 (Out S_2), 21-22 (Out S_4) and 23-24 (Out S_3) are: open when relay is de-energized, closed in energized relay condition. Terminals 17-18 (Out P_1) and 19-20 (Out P_2) are: closed when relay is de-energized, open in energized relay condition. |
| Contact material |
Ag Alloy (Cd free). |
| Contact rating |
5 A 250 Vac 1250 VA, 5 A 250 Vdc 175 W (resistive load). |
| Contact inrush current |
8 A @ 30 Vdc, 250 Vac. |
| Contact min. switching current |
100 mA. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
10 * 10⁶ / 5 * 10⁴ operation, typical. |
| Operate / release time |
12 ms / 8 ms, typical. |
Isolation
|
| Test Voltage |
Input/All Outs 2.5 kV; Out S_1 & Out P_1/Out S_3 & Out P_2, Out S_2, Out S_4 500 V; Out S_3 & Out P_2/Out S_2, Out S_4 500 V; Out S_2/Out S_4 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits -40 to +60 °C. |
| Storage temperature |
temperature limits -45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm. |
| Weight |
about 145 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 22.5 mm, Depth 123 mm, Height 120 mm. |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
