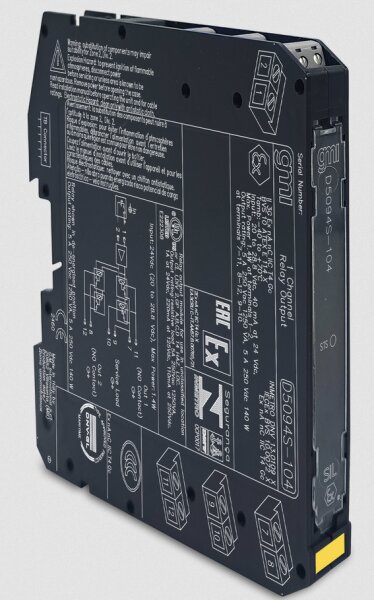

FEATURES
- SIL 3 / SC 3 for NE/ND loads with NE/ND driver
- Installation in Zone 2
- Up to 5 A functional / 6 A inrush current
- Low input voltage
- Load disconnection on both supply lines available
- High process availability to avoid spurious trips
- Compatible with DCS/PLC pulse testing
- Service contact available
- Input/Output isolation
STATUS
Technical Data
Input
|
| Type |
24 Vdc nom (20 to 28.8 Vdc), reverse polarity protected. Relay coils are internally protected with suppressor diodes. |
| Current Consumption |
40 mA @ 24 Vdc, typical. |
| Power Dissipation |
1.0 W @ 24 Vdc, typical. |
Output
|
| Type |
Voltage free 2+2 SPST relay contact (2 paralleled contacts in series) at terminals 7-11 and 8-12, close when relay energized, open in de-energized condition. |
| Contact material |
Ag Alloy (Cd free), gold plated. |
| Contact rating |
5 A 250 Vac 1250 VA, 5 A 250 Vdc 140 W (resistive load). |
| Contact min. switching current |
1 mA. |
| Contact inrush current |
6 A @ 24 Vdc, 250 Vac. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
5 * 10⁶ / 3 * 10⁴ operation, typical. |
| Operate / release time |
30 ms / 30 ms, typical. |
Isolation
|
| Test Voltage |
Out/In 2.5 kV. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits -45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, or on custom Term. Board. |
| Weight |
about 125 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
