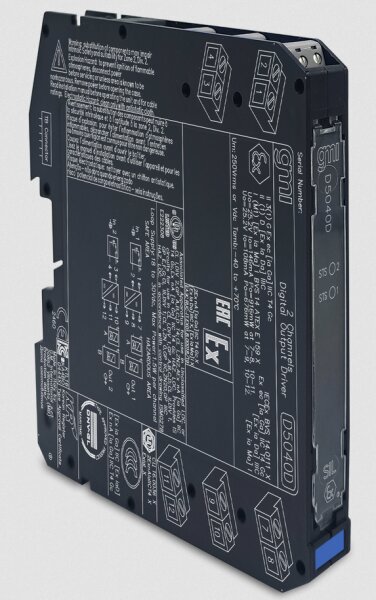

FEATURES
- SIL 3 / SC 3
- Output to Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- 2 fully independent channels
- Loop powered for NE loads
- Output short circuit proof
- Two port isolation, Input/Output
- High Density, two channels per unit
STATUS
Technical Data
Input
|
| Type |
Loop powered control signal. |
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
45 mA @ 24 Vdc with 30 mA outputs, typical. |
| Power Dissipation |
0.75 W @ 24 Vdc with 35 mA outputs, typical. |
Output
|
| Short circuit current |
≥ 35 mA/channel; ≥ 70 mA two outputs in parallel |
| Response time |
≤ 75 ms. |
| Output diagram |
refer to Instruction Manual. |
Isolation
|
| Test Voltage |
I.S. Out/In 1.5 kV; Out/Out 500 V; In/In 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 25.2 V, Io = 146 mA, Po = 916 mW at terminals 7-8, 10-11. Uo = 25.2 V, Io = 108 mA, Po = 676 mW at terminals 7-9, 10-12. Refer to Instruction Manual for more details. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, or on custom Term. Board. |
| Weight |
about 110 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
