FEATURES

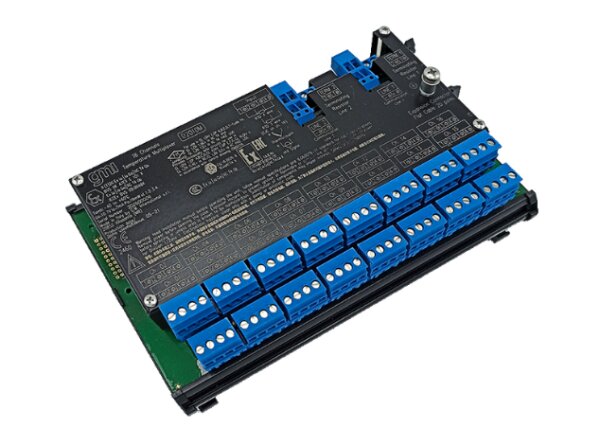

- Output Repeater for D2030M Digital Multiplexer.
- SPDT Relay Output Signals.
- High density, 32 channels per unit, 128 channels per system.
- EMC Compatibility to EN61000-6-2, EN61000-6-4.
STATUS
Technical Data
Supply
|
| Voltage |
24 Vdc nom (20 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp. |
| Current consumption @ 24 V |
300 mA with relays energized. |
| Power Dissipation |
7.2 W with 24 V supply voltage and relays energized. |
| Max. power consumption |
at 30 V supply voltage and relays energized 11.0 W. |
Input
|
| Type |
via D2050M dedicated bus. |
Output
|
| Type |
voltage free SPDT relay contact. |
| Contact material |
AgNi90/10. |
| Contact rating |
2 A 250 Vac 500 VA, 2 A 250 Vdc 80 W (resistive load). |
| DC Load breaking capacity |
See Instruction Manual |
| Mechanical / electrical life |
15 * 106 / 1 * 105 operation, typical. |
| Operate / release time |
5 / 2 ms typical. |
| Bounce time NO / NC contact |
1 / 5 ms. |
| Response time |
20 ms. |
| Frequency response |
10 Hz maximum. |
Isolation
|
| Test Voltage |
Out/In 1.5 KV; Out/Supply 1.5 KV; Out/Out 1.5 KV. |
Environmental conditions
|
| Operating |
temperature limits – 40 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C. |
| Storage |
temperature limits – 45 to + 80 °C. |
Mounting
|
| Type |
T35 DIN Rail according to EN50022. |
| Weight |
about 780 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2. |
| Location |
Safe Area/Non Hazardous Locations installation. |
| Protection class |
IP 20. |
| Dimensions |
Width 127 mm, Length 220 mm, Depth 78 mm. |
| Shipping weight: |
1,00 kg
|
| Item weight: |
0,80 kg
|
| Dimensions
( Length × Width × Height ):
|
25,00 × 18,00 × 19,00 cm |
| Zustand / Condition: |
Neu / New |
