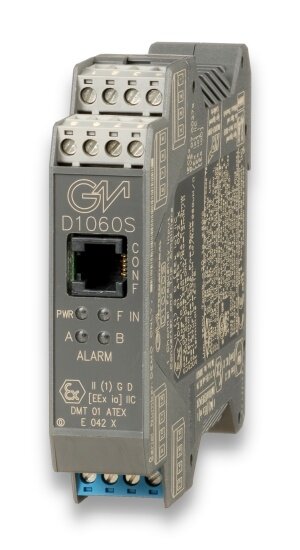

GM International D1060S Frequency-Pulse Converter, Repeater and Trip Amplifiers DIN-Rail Model D1060S

GM International D1060S Frequency-Pulse Converter, Repeater and Trip Amplifiers DIN-Rail Model D1060S

SKU: GMI20250086
HAN: D1060S
Category: GM International
Manufacturers: GM International
Zustand / Condition: Neu / New

$ 547,12

excl. 19% VAT , plus

Available immediately
Delivery time: 10 - 12 Workdays (DE - int. shipments may differ)

Zahlungsmöglichkeiten

PayPal Apple Pay Klarna Mastercard Visa American Express

Description
Dokumente

FEATURES

Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
Magnetic pick-up, proximity input sensor.
Frequency range DC to 50 KHz input.
Repeater output direct or divided by 10, 100, 1000, 10000, 10000 or 1000000.
0/4-20 mA, 0/1-5 V, 0/2-10 V Output Signal linear or reverse.
High Accuracy, µP controlled converter.
Three port isolation, Input/Output/Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4.
Fully programmable operating parameters.
High Density, 1 channel converter, repeater and trip amplifier per unit.
250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.

STATUS

SPARE-ONLY

Next: OBSOLETE (2026-12-31)

CHANNELS

Technical Data

Supply
Voltage	12-24 Vdc nom (10 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.
Current Consumption	60 mA with 20 mA output and transistors energized.
Power Dissipation	1.3 W with 24 V supply, 20 mA output and transistors energized.
Max. power consumption	at 30 V supply voltage, overload condition, transistors output energized and PPC1090 connected, 1.9 W.
Input
Type	magnetic pick-up, contact, proximity to EN60947-5-6, open-collector transistor for frequency signal up to 50 KHz, TTL CMOS.
Magnetic pick-up sensitivity	≥ 20 mVpp up to 100 Hz input, ≥ 50 mVpp up to 1 KHz, ≥ 100 mVpp up to 5 KHz, ≥ 500 mVpp up to 20 KHz, ≥ 1 Vpp up to 50 KHz.
Switching current levels	ON ≥ 2.1 mA, OFF ≤ 1.2 mA, switch current ≈ 1.65 mA ± 0.2 mA hysteresis (for proximity or transistor input).
Equivalent source	8 V 1 KΩ typical (8 V no load, 8 mA short circuit).
Integration time	100 ms
Resolution/Visualization	1 mHz for 50 Hz range, 10 mHz for 500 Hz range, 100 mHz for 5 KHz range, 1 Hz for 50 KHz range.
Input range	0 to 50.5 KHz maximum.
Burnout
Type	downscale analog output signal for loss of input signal.
Output
Type	0/4 to 20 mA, on max. 600 Ω load source mode, current limited at 22 mA or 0/1 to 5 V or 0/2 to 10 V signal, limited at 11 V.
Resolution	1 µA current output or 1 mV voltage output.
Transfer characteristic	linear direct or reverse.
Response time	≤ 50 ms (10 to 90 % step change).
Output ripple	≤ 20 mVrms on 250 Ω load.
Repeater Output
Type	voltage free SPST optocoupled open-collector transistor.
Output factor	direct 1:1 or divided by 10, 100, 1000, 10000, 100000 or 1000000.
Open-collector rating	100 mA at 35 Vdc (≤ 1.5 V voltage drop).
Leakage current	≤ 50 µA at 35 Vdc
Frequency response	50 KHz maximum
Alarm
Trip point range	within rated limits of input range (see input for step resolution).
Delay time	0 to 1000 s, 100 ms step.
Hysteresis	0 to 5 Hz for 50 Hz range, 0 to 50 Hz for 500 Hz range, 0 to 500 Hz for 5 KHz range, 0 to 5 KHz for 50 KHz range (see input visualization parameters for step resolution).
Output	voltage free SPST optocoupled open-collector transistor.
Open-collector rating	100 mA at 35 Vdc (≤ 1.5 V voltage drop).
Leakage current	≤ 50 µA at 35 Vdc.
Input performance
Type	Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
Calibration and linearity accuracy	≤ ± 0.05 % of full scale of selected input range.
Temperature influence	≤ ± 0.005 % of full scale input range for a 1 °C change.
Output performance
Type	Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
Calibration accuracy	≤ ± 0.1 % of full scale
Linearity error	≤ ± 0.05 % of full scale.
Supply voltage influence	≤ ± 0.05 % of full scale for a min to max supply change.
Load influence	≤ ± 0.05 % of full scale for a 0 to 100 % load resistance change.
Temperature influence	≤ ± 0.01 % on zero and span for a 1 °C change.
Isolation
Test Voltage	I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; Analog Out/Supply 500 V; Analog Out/Digitals Out 500 V; Digital Outs/Supply 500 V; Digital Out/Digitals Out 500 V;
Environmental conditions
Operating	temperature limits –20 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C.
Storage	temperature limits – 45 to + 80 °C.
Safety description
Safety parameters	Uo/Voc = 10.9 V, Io/Isc = 1.1 mA, Po/Po = 3 mW at terminals 13-16. Uo/Voc = 15.5 V, Io/Isc = 13 mA, Po/Po = 48 mW at terminals 14-15. Uo/Voc = 10.9 V, Io/Isc = 23 mA, Po/Po = 60 mW at terminals 15-16. Ui/Vmax = 30 V, Ci = 0 nF, Li = 0 nH at terminals 13-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60°C.
Mounting
Type	EN/IEC60715 TH 35 DIN-Rail.
Weight	about 155 g.
Connection	by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm².
Location	Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.
Protection class	IP 20.
Dimensions	Width 22.5 mm, Depth 99 mm, Height 114.5 mm.

Item information	Value
Shipping weight:	0,50 kg
Item weight:	0,30 kg
Dimensions ( Length × Width × Height ):	16,00 × 14,00 × 14,00 cm
Zustand / Condition:	Neu / New
