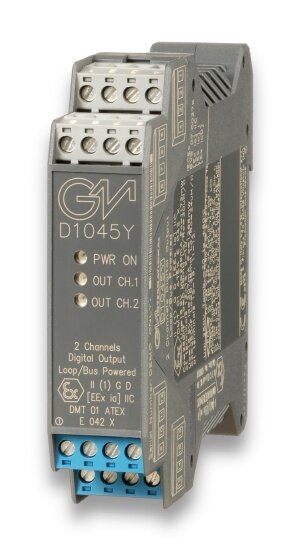

FEATURES
- Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
- Voltage input with isolated commands, loop powered or bus powered.
- Suitable for driving 1 or 2 positions directional solenoid valves.
- Output short circuit proof and current limited.
- Three port isolation, Input/Output/Supply.
- EMC Compatibility to EN61000-6-2, EN61000-6-4.
- 250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.
STATUS
PHASE-OUT
Next: SPARE-ONLY (2027-01-01)
Technical Data
Supply
|
| Voltage |
24 Vdc nom (21.5 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp. |
| Current Consumption |
90 mA @24 V with output energized at nominal load, 110 mA @24 Vwith short circuit output. |
| Power Dissipation |
1.4 W with 24 V supply voltage, output energized at nominal load. |
| Max. power consumption |
at 30 V supply voltage and short circuit output, 2.9 W |
Input
|
| Type |
switch contact, logic level or loop powered. |
| Trip voltage levels |
OFF status ≤ 1.0 V, ON status ≥ 6.0 V (maximum 30 V) |
| Current Consumption |
3 mA @24 V(≈ 10 KΩ input impedance). |
Output
|
| Type |
70 mA at 11.3 V (17.0 V no load, 81.4 Ω series resistance) at terminals 13-14, 9-10 (Out A). 70 mA at 12.2 V (17.0 V no load, 68.6 Ω series resistance) at terminals 15-16, 11-12 (Out B). |
| Short circuit current |
≥ 85 mA (90 mA typical) |
| Response time |
20 ms (power up in 600 ms typical in loop powered mode). |
Isolation
|
| Test Voltage |
I.S. Out/In 1.5 KV; I.S. Out/Supply 1.5 KV; In/Supply 500 V; In/In 500 V |
Environmental conditions
|
| Operating |
temperature limits -20 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C. |
| Storage |
temperature limits – 45 to + 80 °C. |
Safety description
|
| Safety parameters |
Uo/Voc = 18.9 V, Io/Isc = 249 mA, Po/Po = 1173 mW at terminals 13-14, 9-10 (Out A). Uo/Voc = 18.9 V, Io/Isc = 307 mA, Po/Po = 1286 mW at terminals 15-16, 11-12 (Out B). Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C. |
Mounting
|
| Type |
EN/IEC60715 TH 35 DIN-Rail. |
| Weight |
about 130 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2. |
| Location |
Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation. |
| Protection class |
IP 20. |
| Dimensions |
Width 22.5 mm, Depth 99 mm, Height 114.5 mm. |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
