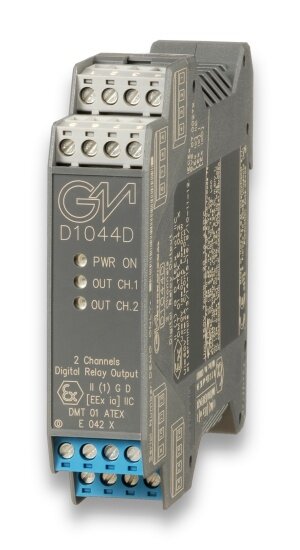

FEATURES
- SIL2 /SIL3/SC3
- Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
- High Density,two channels per unit.
- Voltage, contact, logic level input.
- Two SPDT Relay Output Signals.
- Three port isolation, Input/Output/Supply.
- EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1.
- 250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.
STATUS
PHASE-OUT
Next: SPARE-ONLY (2027-01-01)
ALTERNATIVE PRODUCT
Technical Data
Supply
|
| Voltage |
24 Vdc nom (20 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp. |
| Current Consumption |
55 mA with relays energized. |
| Power Dissipation |
1.35 W with 24 V supply voltage and relays energized. |
| Max. power consumption |
at 30 V supply voltage and relays energized, 1.5 W |
Input
|
| Type |
switch contact, logic level. |
| Trip voltage levels |
OFF status ≤ 1.0 V, ON status ≥ 6.0 V (maximum 30 V). |
| Current Consumption |
3 mA @ 24 V(≈ 10 KΩ input impedance). |
Output
|
| Type |
voltage free SPDT relay contact. |
| Contact material |
AgNi90/10. |
| Contact rating |
60 Vdc, 2 A for use in Intrinsic Safety applications, 2 A 250 Vac 500 VA, 2 A 250 Vdc 80 W (resistive load) for non Intrinsic Safety applications. |
| DC Load breaking capacity |
15 * 106 / 1 * 105 operation, typical. |
| Mechanical / electrical life |
see innstruction manual |
| Operate / release time |
5 / 2 ms typical. |
| Bounce time NO / NC contact |
1 / 5 ms. |
| Response time |
20 ms. |
| Frequency response |
10 Hz maximum. |
Isolation
|
| Test Voltage |
I.S. Out/In 1.5 KV; I.S. Out/Supply 1.5 KV; I.S. Out/I.S. Out 500 V; In/Supply 500 V; In/In 500 V. |
Environmental conditions
|
| Operating |
temperature limits -20 to + 60 °C, relative humidity max 95 %. |
| Storage |
temperature limits -45 to + 80 °C. |
Safety description
|
| Safety parameters |
Uo/Voc = 0 V, Io/Isc = 0 mA, Po/Po = 0 mW at terminals 13/14-15-16, 9/10-11-12 (Uo, Io, Po equal to the connected Intrinsic Safety circuit). Ui/Vmax = 60 V, Ii/Imax = 2 A, Ci = 0 nF, Li = 0 nH at term. 13/14-15-16, 9/10-11-12. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C. |
Mounting
|
| Type |
EN/IEC60715 TH 35 DIN-Rail. |
| Weight |
about 140 g |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2. |
| Location |
Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation. |
| Protection class |
IP 20. |
| Dimensions |
Width 22.5 mm, Depth 99 mm, Height 114.5 mm. |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
