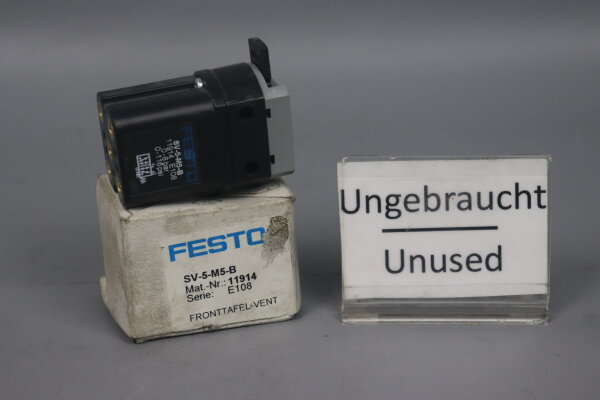

Valve function 5/2 monostable
Nominal flow rate (normalized according to DIN 1343) manual
Nominal flow rate [l/min] 95
Operating pressure [bar] 0 to 8
Design seat valve with return spring
Return mechanism mechanical spring
Nominal diameter [mm] 2.3
Sealing principle soft
Note on operating and control medium any
LABS compliance direct
Overlap positive overlap
Operating medium Compressed air according to ISO 8573-1:2010 [-:-:-]
Ambient temperature [°C] -10 to 60
Actuating force [N] 17.0
Mounting type Panel mounting,
with through-hole
Pneumatic connection 1 M5
Seal material NBR
Housing material Plastic,Brass
| Shipping weight: |
0,20 kg
|
| Item weight: |
0,10 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
Product safety information
Manufacturer information:
Festo Vertrieb GmbH & Co. KG
Festo Campus 1
Baden-Württemberg
Esslingen am Neckar, Deutschland, 73734
technik@festo.com
https://www.festo.com/de
Important Notice!
Our items are generally not new. They come from inventory liquidations and dismantlings.
Please note that for items where no age information is provided in the description, it should be assumed that they have been stored for a very long time, possibly several years. This can affect the quality and durability of technical items. Please consider this before making a purchase.
