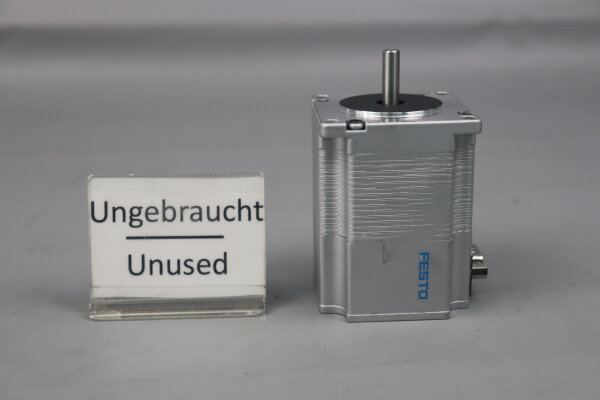

Festo EMMS ST 57 S S G2 Schrittmotor 1370474 2720rpm 24-48VDC
Umgebungstemperatur [°C] -10 bis 50
Lagertemperatur [°C] -20 bis 70
Relative Luftfeuchtigkeit 0 - 85 %
Entspricht Norm IEC 60034
Isolationsschutzklasse B
Wärmeklasse nach EN 60034-1 B
Bemessungsklasse nach EN 60034-1 S1
Schutzart IP54
Elektrische Anschlusstechnik Stecker
Nennbetriebsspannung DC [V] 48
UKCA-Zeichen (siehe Konformitätserklärung) [Nm] 0,80
Max. Drehzahl [1/min] 2.720
Schrittwinkel bei Vollschritt [deg] 1,8
Schrittwinkeltoleranz ±5 %
Nennstrom Motor [A] 5,0
Spannungskonstante Phase [mVmin] 12,0
Wicklungswiderstand Phase [Ohm] 0,15
Wicklungsinduktivität Phase [mH] 0,50
Massenträgheitsmoment Rotor [kg/cm²] 0,290
Wicklungsinduktivität Phase je Einzelphase (unverkettet) [kg/cm²] 0,290
Zulässige axiale Wellenbelastung [N] 10
Zulässige radiale Wellenbelastung [N] 52
Haltemoment Bremse [Nm] 0,4
| Shipping weight: |
0,86 kg
|
| Item weight: |
0,76 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Ungebraucht / Unused |
