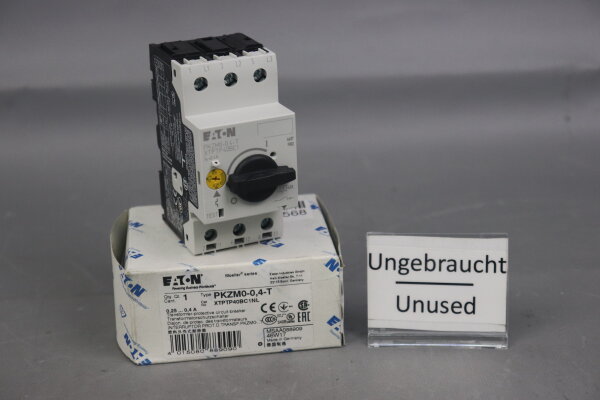

XTPTP40BC1NL
Rated continuous current Iu: 0.4 A
Rated voltage: 690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz: 150 kA
Overload trip current setting: 0.25–0.4 A
Setting range of the short-time-delay short-circuit trip unit: 0 A
Setting range of the instantaneous short-circuit trip unit: 6.79999999 A
Power dissipation: 4.76 W
Device type: Built-in unit, fixed installation Integrated ground fault protection: NoConnection type
Main circuit: Screw terminal
Suitable for DIN rail mounting: Yes
DIN rail mounting optional: Yes
With trip indicator: Yes
With integrated undervoltage trip unit: No
Number of poles: 3
Position of the main circuit connection: Other
Actuator design: Rotary knob, complete unit
With protective unit: No
Integrated motor drive: No
Optional motor drive: No
Protection class (IP): IP20
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,27 kg
|
| Dimensions
( Length × Width × Height ):
|
15,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
Product safety information
Manufacturer information:
Eaton Electric GmbH
Karl-Bold-Str. 40
Baden-Württemberg
Achim, Deutschland, 77855
