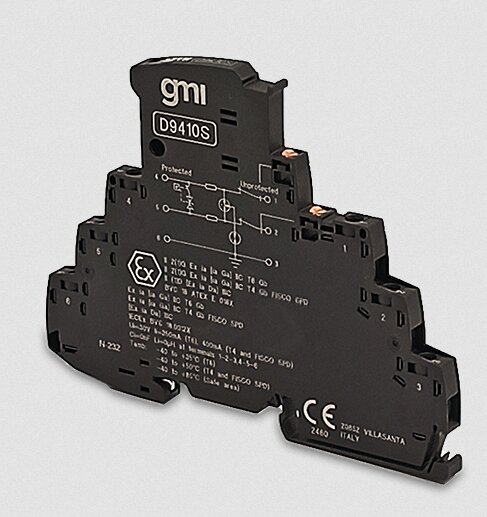

FEATURES
- SIL 3 according to IEC 61508:2010.
- Input from Zone 0 (Zone 20), installation in Zone 1 and 2.
- Disconnection of signal circuit by disconnect knife.
- Signaling without additional auxiliary power, thanks to the mechanical status indicator.
- High Density, 6.2 mm per channel.
- HART compatible.
STATUS
Technical Data
Supply
|
| Nominal system voltage Un |
24 V DC |
| Max continuous operating voltage Uc |
30 V DC |
| Rated current |
600 mA (40°C) |
Protection
|
| IEC test classification |
C1 / C2 / C3 / D1 |
| Protection of signal types |
0/4-20 mA HART, Digital I/O, World FIP, F&G |
| Nominal discharge current (In) |
(8/20) μs: 5 kA (core-core) 5 kA (core-ground) |
| Impulse discharge current (Iimp) |
(10/350) μs: 0.5 kA (core-core) 0.5 kA (core-ground) |
| Total discharge current (Itotal) |
(8/20) μs: 10kA |
| Max. total discharge current (Imax) |
(8/20) μs: 20kA (for one time) |
| Series resistance |
1.65Ω ± 20% |
| Voltage protection level (Up) |
≤ 55 V (C1 - 1 kV/500 A) core-core ≤ 65 V (C2 - 10 kV/5 kA) core-core ≤ 55 V (C3 - 100 A) core-core ≤ 900 V (C1 - 1 kV/500 A) core-ground ≤ 1.05 KV (C2 - 10 kV/5 kA) core-ground ≤ 1.4 KV (C3 - 100 A) core-ground |
| Response time tA |
≤ 1 ns (core-core) ≤ 100 ns (core-ground) |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to + 85 °C, relative humidity 5% to 95%. |
Mounting
|
| Type |
EN/IEC60715 TH 35 DIN-Rail. |
| Weight |
about 37 g. |
| Connection |
screw terminal blocks to accommodate terminations up to 2.5 mm2 flexible. |
| Location |
installation in Safe Area or Zone 2 or Zone 1, Group IIC T4...T6. |
| Protection class |
IP20. |
| Dimensions |
Width 6.2 mm, Depth 83.5 mm, Height 105.8 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
