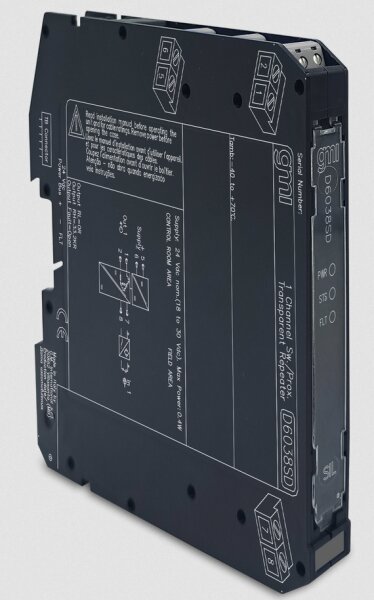

FEATURES
- SIL 3 / SC 3
- Field open and short circuit detection
- Field fault universal mirroring to PLC DI
- Three port isolation, Input/Output/Supply
- In-field programmability by DIP Switch
- High Density, two channels per unit
STATUS
Technical Data
Supply
|
| Voltage |
24 Vdc nom. (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
15 mA @ 24 Vdc, typical. |
| Power Dissipation |
0.4 W @ 24 Vdc, typical. |
Input
|
| Input switching current levels |
ON ≥ 2.1 mA, OFF ≤ 1.2 mA. |
| Open Fault |
Current ≤ 0.05 mA. |
| Short fault |
Resistance ≤ 100 Ω. |
| No Fault |
Current ≥ 0.35 mA and resistance ≥ 360 Ω. |
| Input equivalent source |
8 V 1 kΩ typical (8 V no load, 8 mA short). |
Output
|
| Type |
Voltage free SPST solid-state relays, with series (RL) and parallel (RH-RL) resistances, ±5% tolerance. |
| Fault impedance |
> 1 MΩ. |
| Max voltage |
30 Vdc. |
| Response time |
500 µs. |
| Frequency response |
1 kHz maximum. |
Isolation
|
| Test Voltage |
In/Out 1.5 kV; In/Supply 1.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V. |
Environmental conditions
|
| Operating temperature |
Temperature limits –40 to +70 °C. |
| Storage temperature |
Temperature limits –45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 120 g. |
| Connection |
By polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
Angaben zur Produktsicherheit
Herstellerinformationen:
G.M. International S.p.A
Via G. Mameli 53-55
Monza e Brianza
Villasanta, Italien, 20852
info@gminternational.com
https://gminternational.com/
