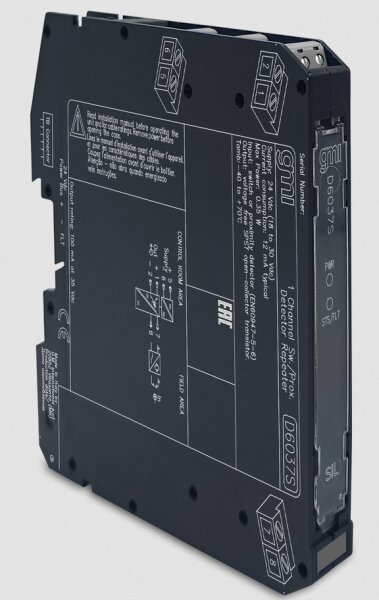

GM International D6037S I.S. SIL2 Switch/Proximity Transistor-Out Repeater

$ 140,19

exkl. 19% USt. , zzgl. (National)

Supply
Voltage	24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption	12 mA @ 24 Vdc with short circuit input and transistor closed, typical.
Power Dissipation	0.30 W @ 24 Vdc with short circuit input and transistor closed, typical.
Input
Input switching current levels	ON ≥ 2.1 mA, OFF ≤ 1.2 mA.
Fault current levels	open fault ≤ 0.2 mA, short fault ≥ 6.8 mA
Input equivalent source	8 V 1 kΩ typical (8 V no load, 8 mA short).
Output
Type
Open-collector/drain rating	100 mA @ 35 Vdc (≤ 1.5 V voltage drop).
Leakage current	≤ 50 μA @ 35 Vdc.
Response time	≤ 100 μs.
Frequency response	5 kHz maximum.
Isolation
Test Voltage	I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V.
Environmental conditions
Operating temperature	temperature limits –40 to +70 °C.
Storage temperature	temperature limits –45 to +80 °C.
Safety description
Equipment	Associated apparatus and non-sparking electrical equipment.
Safety parameters	Uo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.
Mounting
Type	DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
Weight	about 110 g.
Connection	by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).
Dimensions	Width 12.5 mm, Depth 123 mm, Height 120 mm.

Versandgewicht:	0,50 kg
Artikelgewicht:	0,30 kg
Abmessungen ( Länge × Breite × Höhe ):	16,00 × 14,00 × 14,00 cm
Zustand / Condition:	Neu / New
