FEATURES
- SIL 2 / SC 3
- Input from Zone 0
- Installation in Zone 2

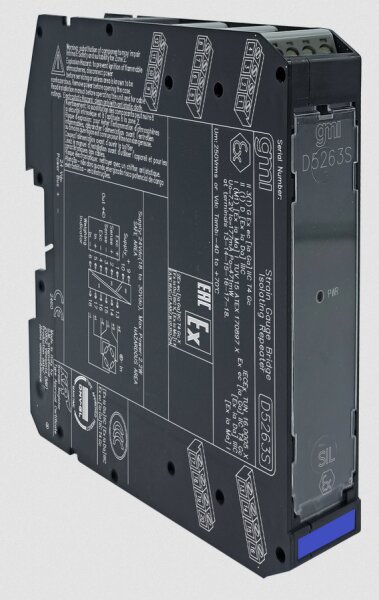

- Strain Gauge Bridge Transparent Repeater
- Up to four 350 Ω load cells in parallel
- High Accuracy
- Three port isolation, Input/Output/Supply
STATUS
Technical Data
Supply
|
| Type |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
75 mA @ 24 Vdc with four 350 Ω load cells connected, typical. |
| Power Dissipation |
1.8 W @ 24 Vdc with four 350 Ω load cells connected, typical. |
Input
|
| Type |
Up to four 350 Ω load cells in parallel or up to five 450 Ω load cells in parallel or up to ten 1000 Ω load cells in parallel. |
| Integration time |
12.5 ms. |
| Bridge supply voltage |
4.0 Vdc nominal. |
| Bridge output signal |
1 to 4 mV/V. |
Output
|
| Type |
Same as the input signal. |
| Output impedance |
500 Ω, typical. |
| Excitation voltage |
externally applied between 4 V and 15 V. |
| Transfer characteristic |
linear. |
| Response time |
≤ 20 ms (10 to 90 % step change). |
Performance
|
| Ref. Conditions |
24 V supply, 23 ± 1 °C ambient temperature. |
| Calibration accuracy |
≤ ± 0.003 % input FSR, after system calibration. |
| Linearity accuracy |
≤ ± 0.002 % input FSR. |
| Short fault |
≤ ± 0.002 % input FSR for a 1 °C change. |
Isolation
|
| Test Voltage |
I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; Out/Supply 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 7.2 V, Io = 177 mA, Po = 471 mW at terminals 13-14-15-16-17-18. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70°C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus. |
| Weight |
about 165 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 22.5 mm, Depth 123 mm, Height 120 mm. |
| Produkteigenschaft |
Wert |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
