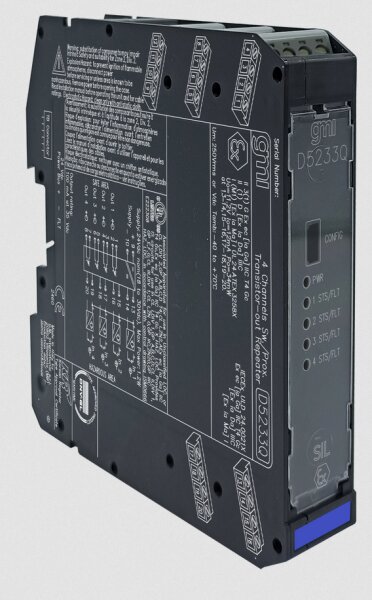

FEATURES
- SIL 2 / SC 3 (pending)
- Input from Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- High frequency transistor output
- Field open and short circuit detection
- Input inversion available
- Duplication available
- Three port isolation, Input/Output/Supply
- High Density, four channels per unit
STATUS
Technical Data
Supply
|
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
45 mA @ 24 Vdc with short circuit input and output closed, typical. |
| Power Dissipation |
1.1 W @ 24 Vdc with short circuit input and output closed, typical, excluding output contact dissipation. |
Input
|
| Type |
Voltage source according to NAMUR standard. |
| Input equivalent source |
7.5 V/1 kΩ typical (7.5 V no load, 7.5 mA short). |
| Input switching current levels |
ON ≥ 2.1 mA, OFF ≤ 1.2 mA. |
| No Fault |
input current ≥ 0.35 mA and input resistance ≥ 360 Ω. |
| Open Fault |
input current ≤ 0.05 mA. |
| Short fault |
input resistance ≤ 100 Ω. |
Output
|
| Type |
Voltage free SPST optocoupled open-collector transistor. |
| Open-collector/drain rating |
100 mA @ 35 V (≤ 1.5 V voltage drop). |
| Leakage current |
≤ 50 µA @ 35 V. |
| Response time |
1.5 ms, maximum. |
| Frequency response |
1 kHz, maximum. |
Isolation
|
| Test Voltage |
I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; Out/Supply 500 V; Out/Out 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 11.2 V, Io = 12 mA, Po = 34 mW at terminals 13-14, 15-16, 17-18, 19-20. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 175 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 22.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
Angaben zur Produktsicherheit
Herstellerinformationen:
G.M. International S.p.A
Via G. Mameli 53-55
Monza e Brianza
Villasanta, Italien, 20852
