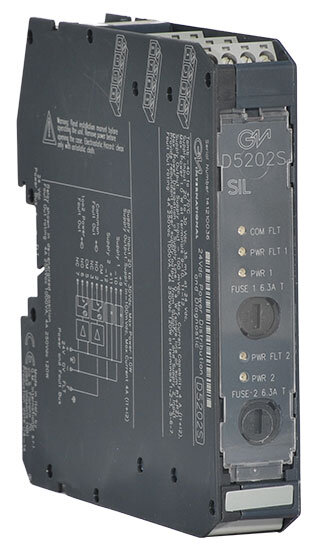

FEATURES
- SIL 3 / SC 3
- Installation in Zone 2
- Separate single or redundant 24 Vdc supply
- Supply current to approx. 40-50 D5000 modules
- Replaceable fuses
- Very low internal dissipation (ideal diode circuits)
STATUS
Technical Data
Supply
|
| Type |
From power Inputs 24 Vdc nom (18 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR ideal diodes to mix supply voltages. |
| Current Consumption |
40 mA @ 24 Vdc with both relays energized, typical. |
| Power Dissipation |
1.0 W @ 24 Vdc with both relays energized, typical. |
| LEDs |
common fault (red), fault supply 1 and 2 (red), power supply 1 and 2 (green). |
| Protection fuse |
5x20 6.3 A time lag (slow blow). |
Fault
|
| Type |
Supply 1 or supply 2 is < 18 Vdc (Under Voltage, UV) or > 30 Vdc (Over Voltage, OV). |
| Preventive - abnormal supply voltage |
supply 1 or supply 2 is < 18 Vdc (Under Voltage, UV) or > 30 Vdc (Over Voltage, OV). |
| Cumulative fault |
cumulative fault indication (about presence of short or open field circuit for any module on the Bus). |
| Fault signalling |
two voltage free NE SPDT relay contacts (de-energized in fault condition). |
| Contact material |
Ag Alloy (Cd free). |
| Contact rating |
4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load). |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
5 * 10⁶ / 3 * 10⁴ operations, typical. |
| Operate / release time |
8 / 4 ms, typical. |
Isolation
|
| Test Voltage |
Relay contact groups/Inputs 1.5 kV. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm with Power Bus. |
| Weight |
about 170 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 22.5 mm, Depth 123 mm, Height 120 mm. |
| Produkteigenschaft |
Wert |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Gebraucht in OVP / Used in box |
Angaben zur Produktsicherheit
Herstellerinformationen:
G.M. International S.p.A
Via G. Mameli 53-55
Monza e Brianza
Villasanta, Italien, 20852
info@gminternational.com
https://gminternational.com/
