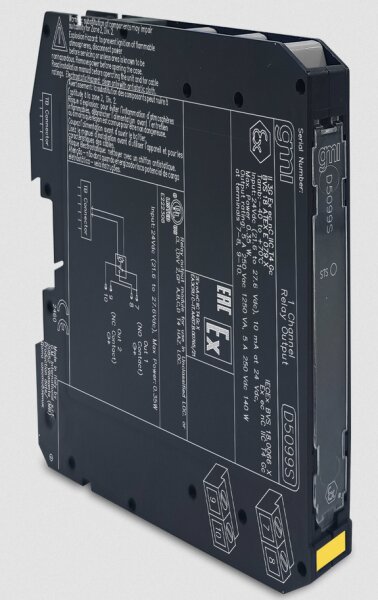

FEATURES
- Installation in Zone 2/Div. 2
- Up to 5 A functional / 6 A inrush current
- Both NO and NC contact available
- Low activation coil current (< 10 mA)
- Input/Output isolation
STATUS
Technical Data
Input
|
| Type |
24 Vdc nom (21.6 to 27.6 Vdc). Relay coils are internally protected with suppressor diodes. |
| Current Consumption |
10 mA @ 24 Vdc, typical. |
| Power Dissipation |
0.24 W @ 24 Vdc, typical. |
Output
|
| Type |
A voltage-free SPDT relay contact: NO contact at terminals 7-8 and NC contact at terminals 9-10. Terminals 7-8 (NO contact) are open when relay is de-energized, closed in energized relay condition. Terminals 9-10 (NC contact) are closed when relay is de-energized, open in energized relay condition. |
| Contact material |
Ag Alloy (Cd free), gold plated. |
| Contact rating |
5 A 250 Vac 1250 VA, 5 A 250 Vdc 140 W (resistive load). |
| Contact min. switching current |
1 mA. |
| Contact inrush current |
6 A @ 24 Vdc, 250 Vac. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
5 * 10⁶ / 3 * 10⁴ operation, typical. |
| Operate / release time |
6 ms / 12 ms, including contact bounce time, typical. |
Isolation
|
| Test Voltage |
Output/Input 1.5 kV. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits -45 to +80 °C. |
Mounting
|
| Type |
On custom Term. Board. |
| Weight |
about 100 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
