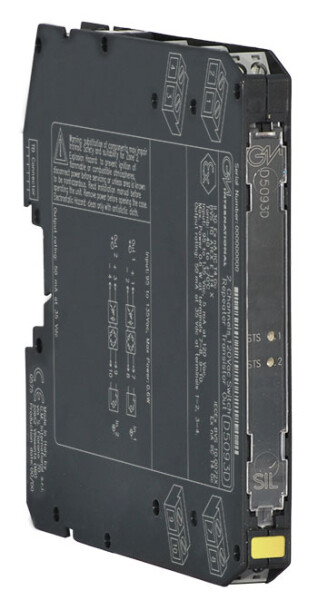

FEATURES
- SIL 3 / SC 3
- Installation in Zone 2/Div. 2
- 2 fully independent channels
- Two port isolation, Input/Output
- High Density, two channels per unit
STATUS
Technical Data
Input
|
| Type |
Loop powered control signal. |
| Input switching voltage levels |
ON ≥ 21 Vac/Vdc, OFF ≤ 15 Vac/Vdc for 24 Vac/Vdc, typical ON ≥ 40 Vac/Vdc, OFF ≤ 30 Vac/Vdc for 48 Vac/Vdc, typical ON ≥ 50 Vac/Vdc, OFF ≤ 35 Vac/Vdc for 60 Vac/Vdc, typical ON ≥ 100 Vac/Vdc, OFF ≤ 75 Vac/Vdc for 120 Vac/Vdc, typical ON ≥ 200 Vac/Vdc, OFF ≤ 160 Vac/Vdc for 220 Vac/Vdc, typical Threshold level selection by means of internal dip-switch (overload protected). |
| Voltage range |
24 to 220 Vac/Vdc nominal (15 to 250 Vac/Vdc). |
| Input current protection |
100 mA fuse internally protected. |
| Current Consumption |
4.5 mA/channel @ 250 Vac/Vdc nominal input, typical. |
| Power Dissipation |
1.13 VA or W/channel with 250 Vac or Vdc, typical. |
Output
|
| Type |
Voltage free SPST optocoupled open-drain transistor (solid-state relay, MOSFET output). |
| Open-collector/drain rating |
50 mA @ 35 Vdc (≤ 0.5 Vdc voltage drop). |
| Leakage current |
≤ 10 µA @ 35 Vdc. |
| Response time |
≤ 120 ms. |
Isolation
|
| Test Voltage |
In/Out 2.5 kV; In/In 1.5 kV; Out /Out 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, or on custom Term. Board. |
| Weight |
about 115 g |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Produkteigenschaft |
Wert |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
