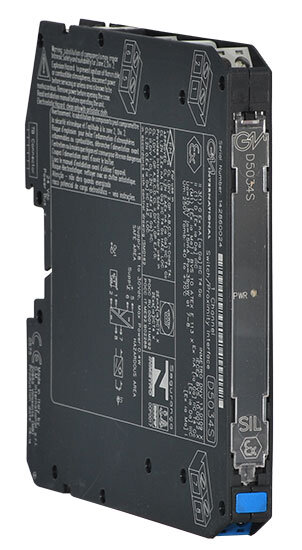

FEATURES
- SIL 3/ SC 3
- Input from Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- 2 fully independent channels
- Field fault mirroring to PLC NAMUR DI
- High Accuracy
- Three port isolation, Input/Output/Supply
Technical Data
Supply
|
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
15 mA @ 24 Vdc with short circuit input, typical. |
| Power Dissipation |
0.36 W @ 24 Vdc with short circuit input, typical. |
Input
|
| Current range |
≥ 0.1 mA to ≤ 8.0 mA. |
| Input equivalent source |
8 V 1 kΩ typical (8 V no load, 8 mA short). |
Output
|
| Type |
0.1 to 8.0 mA in sink mode, V max. 30 V, current limited ≈ 8 mA, repeats input current level. |
| Response time |
1 ms (0 to 100 % step change). |
| Power Dissipation |
0.2 W @ 24 Vdc with short circuit input, typical. |
Performance
|
| Ref. Conditions |
24 V supply, 23 ± 1 °C ambient temperature. |
| Calibration accuracy |
≤ ± 0.25 % FSR. |
| Linearity accuracy |
≤ ± 0.25 % FSR. |
| Temp. influence |
≤ ± 0.03 % FSR on zero/span for a 1 °C change. |
Isolation
|
| Test Voltage |
I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 10.5 V, Io = 15 mA, Po = 39 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 115 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
