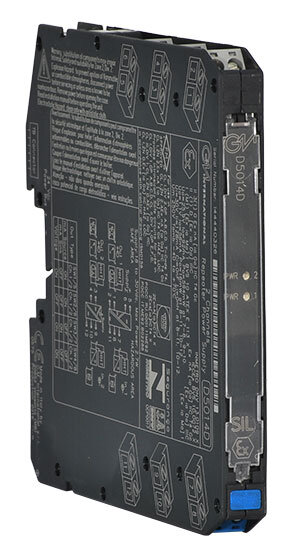

FEATURES
- SIL 3 / SC 3
- Input from Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- 2 fully independent channels
- 4-20 mA Active-Passive Input, Source-Sink Output
- Output current duplication available
- HART® compatible
- Input and Output short circuit proof
- In-field programmability by DIP Switch
- High Accuracy
- Three port isolation, Input/Output/Supply
- High Density, two channels per unit
STATUS
Technical Data
Supply
|
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected |
| Current Consumption |
90 mA @ 24 Vdc with 20 mA out, typical. |
| Power Dissipation |
1.35 W @ 24 Vdc with 20 mA out, typical. |
Input
|
| Type |
4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA. |
| Transmitter line voltage |
15.0 V typical, 14.5 V minimum, @ 20 mA. |
Output
|
| Type |
4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance); V min. 8 V @ 0 Ω load V max. 30 V in sink mode, current limited ≈ 25 mA or 1 to 5 V on internal 250 Ω shunt. Output current duplication available (D5014D). |
| Response time |
5 ms (0 to 100 % step change). |
Performance
|
| Ref. Conditions |
24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature. |
| Calibration accuracy |
≤ ± 0.1 % FSR. |
| Linearity accuracy |
≤ ± 0.05 % FSR. |
| Temp. influence |
≤ ± 0.01 % FSR on zero/span for a 1 °C change. |
Isolation
|
| Test Voltage |
I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 25.9 V, Io = 92 mA, Po = 594 mW at terminals 7-8, 9-10. Uo = 1.1 V, Io = 56 mA, Po = 16 mW at terminals 8-11, 10-12. Ui = 30 V, Ii = 128 mA, Ci = 0 nF, Li = 0 nH at terminals 8-11, 10-12. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 155 g |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Produkteigenschaft |
Wert |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
