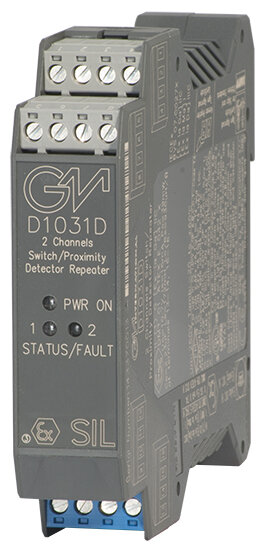

GM International D1031D SIL 2 Switch/Proximity Detector Repeater Transistor Output DIN-Rail Models D1031D, D1031Q

GM International D1031D SIL 2 Switch/Proximity Detector Repeater Transistor Output DIN-Rail Models D1031D, D1031Q

Artikelnummer: GMI20250037
Hersteller: GM International

207,00 €

exkl. 19% USt. , zzgl. (National)

Sofort verfügbar
Lieferzeit: 3 - 5 Werktage (Ausland)

Beschreibung

FEATURES

SIL2 /SC3
Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
High Density, four channels per unit.
NO/NC contact/proximity Detector Input.
Four opto isolated voltage free Transistor Output Signals.
SPDT Relay Output for fault detection on single chammel version.
Transistor Output for fault detection on dual channel version.
Three port isolation, Input/Output/Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN1326-1
In-field programmability by DIP Switch.
250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

Technical Data

Supply
Voltage	12-24 Vdc nom (10 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp
Current Consumption	40 mA with input closed and transistors energized.
Power Dissipation	1.0 W with 24 V supply voltage, input closed and transistors energized.
Max. power consumption	at 30 V supply voltage, short circuit input and transistors energized, 1.0 W
Input
Type	ON ≥ 2.1 mA, OFF ≤ 1.2 mA, switch current ≈ 1.65 mA ± 0.2 mA hysteresis.
Fault current levels	open fault ≤ 0.2 mA, short fault ≥ 6.8 mA (when enabled both faults de-energize channel transistor with quad channel unit D1031Q or actuate fault transistor with dual channel unit D1031D).
Input equivalent source	8 V 1 KΩ typical (8 V no load, 8 mA short circuit).
Output
Type	voltage free SPST optocoupled open-collector transistor
Open-collector rating	100 mA at 35 V (≤ 2.0 V voltage drop).
Leakage current	≤ 50 µA at 35 V
Response time	500 µs
Frequency response	1 KHz maximum
Isolation
Test Voltage	I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; Out/Supply 500 V; Out 1-3/Out 2-4 500 V.
Environmental conditions
Operating	temperature limits -20 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C.
Storage	temperature limits -45 to + 80 °C.
Safety description
Safety parameters	Uo/Voc = 10.7 V, Io/Isc = 15 mA, Po/Po = 39 mW at terminals 13-14, 15-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.
Mounting
Type	EN/IEC60715 TH 35 DIN-Rail.
Weight	about 130 g D1031Q, 120 g D1031D.
Connection	by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm².
Location	Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.
Protection class	IP 20
Dimensions	Width 22.5 mm, Depth 99 mm, Height 114.5 mm.

Versandgewicht:	0,50 kg
Artikelgewicht:	0,30 kg
Abmessungen ( Länge × Breite × Höhe ):	16,00 × 14,00 × 14,00 cm
Zustand / Condition:	Neu / New
