| Hub pro Backe [mm] |
5.0 |
| Öffnungskraft [N] |
340.0 |
| Öffnungskraft (bei Fingerlänge 0 mm) [N] |
373.0 |
| Min. Federkraft [N] |
95.0 |
| Eigenmasse [kg] |
0.28 |
| Empfohlenes Werkstückgewicht [kg] |
1.15 |
| Zylindervolumen pro Doppelhub [cm³] |
15.2 |
| Min. Betriebsdruck [bar] |
4.0 |
| Max. Betriebsdruck [bar] |
6.5 |
| Nennbetriebsdruck [bar] |
6.0 |
| Schließzeit [s] |
0.06 |
| Öffnungszeit [s] |
0.05 |
| Schließ-/Öffnungszeit mit Feder [s] |
0.3 |
| Max. zulässige Fingerlänge [mm] |
45.0 |
| Max. zulässige Masse pro Finger [kg] |
0.08 |
| Schutzart IP |
40 |
| Min. Umgebungstemperatur [°C] |
5.0 |
| Max. Umgebungstemperatur [°C] |
90.0 |
| Wiederholgenauigkeit [mm] |
0.01 |
| Reinraumklasse ISO 14644-1 |
5 |
| Durchmesser D [mm] |
45.0 |
| Höhe Z [mm] |
58.0 |
| Moment Mx max. [Nm] |
2.0 |
| Moment My max. [Nm] |
2.8 |
| Moment Mz max. [Nm] |
3.0 |
| Max. Kraft axial Fz max. [N] |
250.0 |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,32 kg
|
| Dimensions
( Length × Width × Height ):
|
33,00 × 23,00 × 13,00 cm |

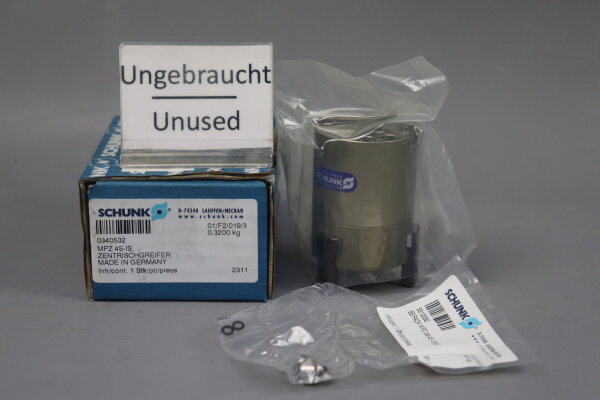

| Zustand / Condition: |
Ungebraucht in OVP / Unused in box |
