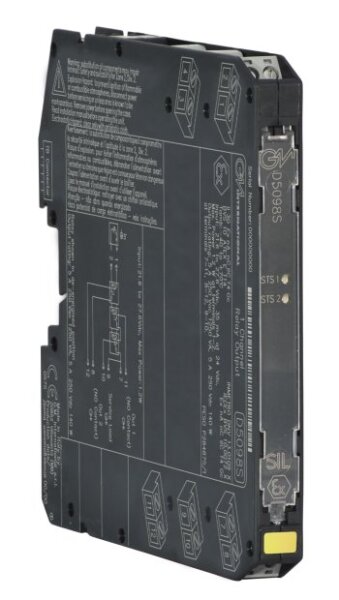

FEATURES
- SIL 3 / SC 3 for NE loads with NE driver
- Installation in Zone 2
- Up to 5 A functional / 6 A inrush current
- Compatible with DCS/PLC pulse testing
- Service contact available
- Input/Output isolation
STATUS
Technical Data
Input
|
| Type |
24 Vdc nom (21.6 to 27.6 Vdc), reverse polarity protected. Relay coils are internally protected with suppressor diodes. |
| Current Consumption |
45 mA @ 24 Vdc, typical |
| Power Dissipation |
1.1 W (D5098D), @ 24 Vdc, typical. |
Output
|
| Type |
1 voltage free SPDT relay contact identified with outputs: Out 1 (NO contact) terminals 7-8 and Service Load Out 1 (NC contact) terminals 7-11; 1 voltage free SPDT relay contact identified with outputs Out 2 (NO contact) terminals 9-10 and Service Load Out 2 (NC contact) terminals 9-12 (only for D5098D). Terminals 7-8 (Out 1) and 9-10 (Out 2, only for D5098D) are open when relay is de-energized, closed in energized relay condition. Service load outputs (not SIL) at terminals 7-11 and 9-12 (only for D5098D) are normally closed when relay is de-energized, open in energized relay condition. |
| Contact material |
Ag Alloy (Cd free), gold plated. |
| Contact rating |
5 A 250 Vac 1250 VA, 5 A 250 Vdc 140 W (resistive load). |
| Contact min. switching current |
1 mA. |
| Contact inrush current |
6 A @ 24 Vdc, 250 Vac. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Contact current derating |
refer to Instruction Manual. |
| Mechanical / electrical life |
5 * 10⁶ / 3 * 10⁴ operation, typical. |
| Operate / release time |
30 ms / 20 ms, typical. |
Isolation
|
| Test Voltage |
Output/Input 1.5 kV; Input/Input 500 V; Output/Output 1.5 kV. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits -45 to +80 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, or on custom Term. Board. |
| Weight |
about 110 g |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
