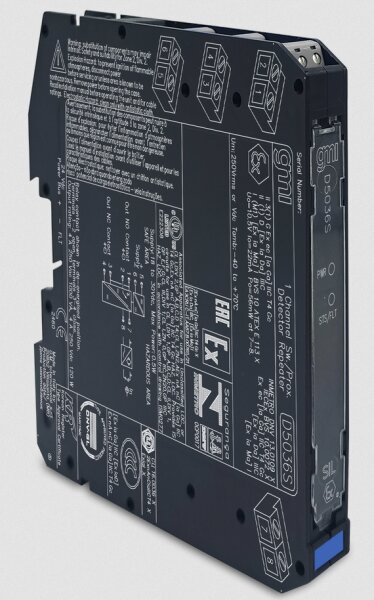

FEATURES
- SIL 2 / SC 3
- Input from Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- High voltage/current rating relay output
- Field open and short circuit detection
- In-field programmability by DIP Switch
- Three port isolation, Input/Output/Supply
- High Density, two channels per unit
Technical Data
Supply
|
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
35 mA (D5036D), 18 mA (D5036S), @ 24 Vdc with short circuit input and relay energized, typical. |
| Power Dissipation |
0.85 W (D5036D), 0.45 W (D5036S), @ 24 Vdc with short circuit input and relay energized, typical. |
Input
|
| Input switching current levels |
ON ≥ 2.1 mA, OFF ≤ 1.2 mA. |
| Fault current levels |
open fault ≤ 0.2 mA, short fault ≥ 6.8 mA. |
| Input equivalent source |
8 V 1 kΩ typical (8 V no load, 8 mA short). |
Output
|
| Type |
Voltage free SPST (D5036D) or SPDT (D5036S) relay contact. |
| Contact material |
Ag Alloy (Cd free), gold plated. |
| Contact rating |
4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load). |
| Contact min. switching current |
1 mA. |
| DC and AC load breaking capacity |
refer to Instruction Manual. |
| Mechanical / electrical life |
5 * 10⁶ / 3 * 10⁴ operation, typical. |
| Operate / release time |
8 / 4 ms, typical. |
| Frequency response |
10 Hz maximum. |
Isolation
|
| Test Voltage |
I.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; I.S. In/ I.S In 500 V; Out/Supply 1.5 kV; Out/Out 1.5 kV. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus. |
| Weight |
about 135 g (D5036D), 120 g (D5036S). |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
