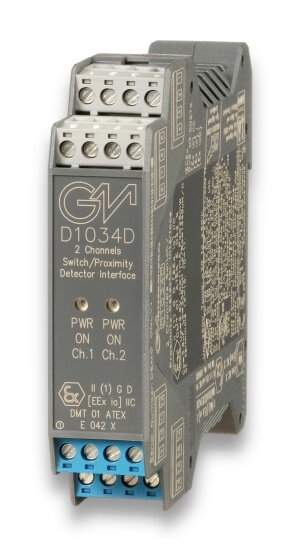

FEATURES
- SIL2 /SC3
- Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
- High Density, four channels per unit.
- NO/NC contact/proximity Detector Input.
- Four opto isolated voltage free Transistor Output Signals.
- Common negative or positive output both accepted.
- Transistor Output for fault detection on dual channel version.
- Line fault detection with common signalling available when using Power Bus enclosure.
- Three port isolation, Input/Output/Supply.
- EMC Compatibility to EN61000-6-2, EN61000-6-4, EN1326-1
- In-field programmability by DIP Switch.
- 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
STATUS
PHASE-OUT
Next: SPARE-ONLY (2027-01-01)
ALTERNATIVE PRODUCT
Technical Data
Supply
|
| Voltage |
12-24 Vdc nom (10 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp. |
| Current Consumption |
40 mA with short circuit input typical. |
| Power Dissipation |
1.4 W with 24 V supply voltage, short circuit input and 24 V loop output voltage. |
| Max. power consumption |
at 30 V supply voltage and short circuit input, 1.2 W |
Input
|
| Type |
≥ 0.1 mA, ≤ 7.0 mA |
| Input equivalent source |
8 V 1 KΩ typical (8 V no load, 8 mA short circuit). |
Output
|
| Type |
0.1 to 7.0 mA in sink mode, V min. 5 V at 0 Ω load V max. 30 V, current limited at ≈ 8 mA, repeats input current level. |
| Response time |
5 ms (10 to 90 % step change). |
Isolation
|
| Test Voltage |
I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V. |
Environmental conditions
|
| Operating |
temperature limits -20 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C. |
| Storage |
temperature limits – 45 to + 80 °C. |
Safety description
|
| Safety parameters |
Uo/Voc = 9.6 V, Io/Isc = 11 mA, Po/Po = 25 mW at terminals 14-15, 10-11. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C. |
Mounting
|
| Type |
EN/IEC60715 TH 35 DIN-Rail |
| Weight |
about 160 g |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2. |
| Location |
Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation. |
| Protection class |
IP 20. |
| Dimensions |
Width 22.5 mm, Depth 99 mm, Height 114.5 mm. |
| Produkteigenschaft |
Wert |
| Versandgewicht: |
0,50 kg
|
| Artikelgewicht: |
0,30 kg
|
| Abmessungen
( Länge × Breite × Höhe ):
|
16,00 × 14,00 × 14,00 cm |
| Zustand / Condition: |
Neu / New |
